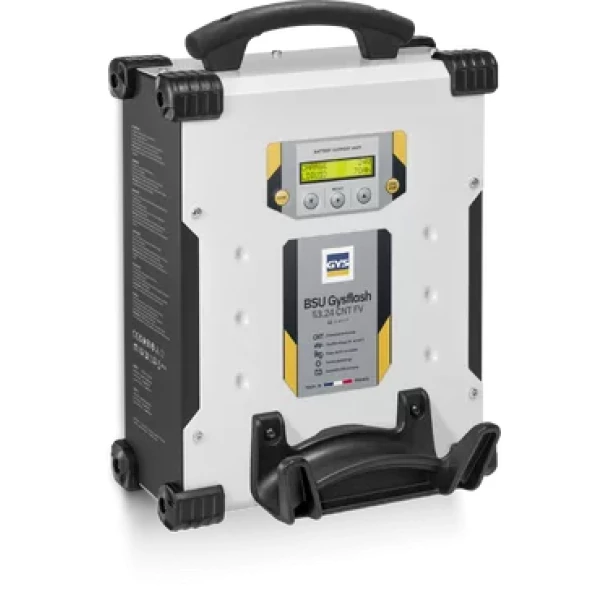

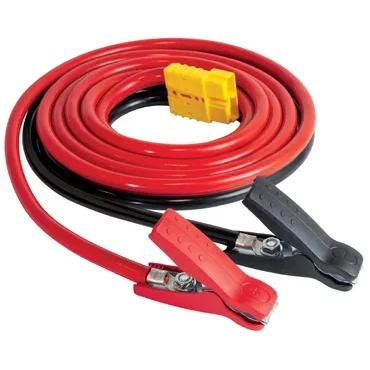

GYSFLASH 53.24 CNT FV (5m Cables)

Description

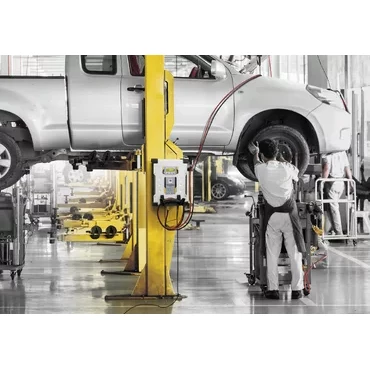

Designed for wall-mounting or installation on lifts, the vertical GYSFLASH 53.24 CNT FV is a high-power 50 A charger with inverter technology. It keeps 6 V, 12 V, 16 V and 24 V lead-acid or lithium (lithium-ion standard + lithium-iron phosphate) batteries at a perfect stabilised voltage during diagnostic procedures. It also delivers the optimum charging cycle for the maintenance of the most advanced vehicles on the market. With USB connectivity, the device is 100% customisable.

4 Operating Modes

Charge: for 6, 12, 16 or 24 V lead-acid or lithium batteries from 10 to 600 Ah. Intuitive interface

• Diagnostic: supports vehicle batteries up to 50 A during diagnostics in available in 22 languages vehicle maintenance facilities.
• Showroom: ensures compensation of current when using the electrical resources of a demonstration vehicle. It also optimises the charging process of the battery.
• Tester: is used to check the battery voltage, assess the starting system (starter + battery) and evaluate the condition of the vehicle’s alternator. 100% CONNECTED
• Add, delete or modify charging modes and profiles via USB.
• Import predefined configuration files, suited to the specific charging application.
• Retrieve charging data and history via USB stick, and analyse it in a spreadsheet.
• Connect additional modules (printer, barcode reader, etc.) via the dedicated module socket (SMC: Smart Module Connector).

Automatic Charging

Extends the life and performance of Lead (gel, AGM, liquid, calcium, etc.) and Lithium (Lithium-ion «standard» + Lithium-iron Phosphate) batteries. Wall mounting

• Specific 9-step (Lead) or 9-step (Lithium) charge curve for unmonitored charging.
• Recovers deeply discharged batteries >2 V (automatic SOS Recovery).

Technologies & Advanced Functions

FV Flexible Voltage, the charger can operate with a supply voltage between 85 and 265 V.

• Control and calibration of cables.
• Lockable, prevents any risk of accidental or improper operation, ideal for garages and exhibition CNT MODULES centres.

Ergonomic

Compact, robust enclosure with front-mounted cable storage and vibration/shock-absorbing feet.

• Wall-mounted with optional magnetic slide system (MagnetFix 50).

Specifications

• Model: GYSFLASH 53.24 CNT FV
• Family: CHARGERS
• Sub-family: CHARGERS – GYSFLASH PRO
• Catalogue: CHARGER
• Country of origin: FR
• EAN / GTIN-13: 3154020082540

Welding parameters

• Mains voltage: 230110
• Power supply: Single-phase
• Design: Inverter
• Automatable / robotisable: Yes
• Weld traceability: Yes

Charger

• Charge capacity: 10-600

Dimensions & weight

• Net weight: 5.14 kg
• H × W × D: 12.5 × 26.5 × 36.5 cm

View on GYS | CE certificate
