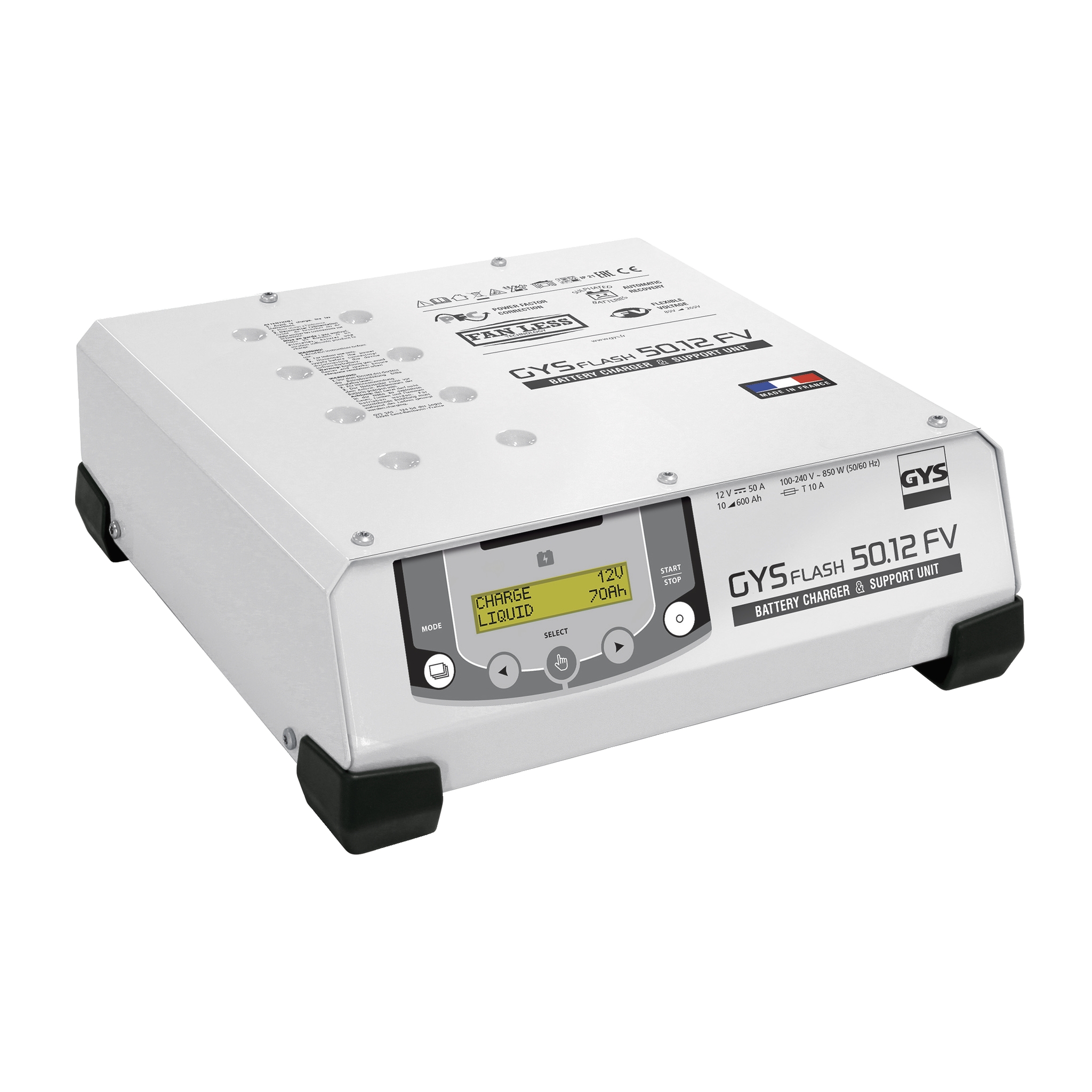

GYSflash 50.12 Charger Hf Fv

Description

The GYSFLASH 50.12 Charger HF FV is a high power, 50A, stabilised supply incorporating Inverter technology with 5 functions. Battery support: sustains 12V (liquid or gel) automotive battery during diagnostic work. Advance battery charger: ensures an ideal charging cycle for battery maintenance for the most modern vehicle. Showroom mode: maintains batteries in showroom vehicles. In «battery change» mode, will maintain electrical supply to preserve vehicle memory settings. High power stabilised supply: voltage & current adjustable.

5 operating modes

• Charging mode
• Diagnostic mode
• Showroom mode
• Change Battery mode
• Power Supply mode

Advanced features

• Automatic restarting
• Cable testing and calibrating
• Showroom mode locking feature
• Easy charging mode
• Activate and adjust expert-level charging curves
• Automatic SOS sulphated-battery recovery

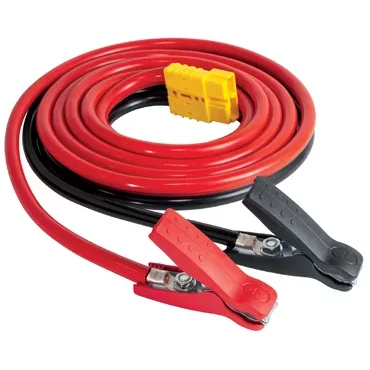

Cables

• Fitted with 2 x 2.5 m – 10 mm² cables
• It can be fitted with 2 x 8 m – 16 mm² and more. The calibration will take place automatically

FEATURES

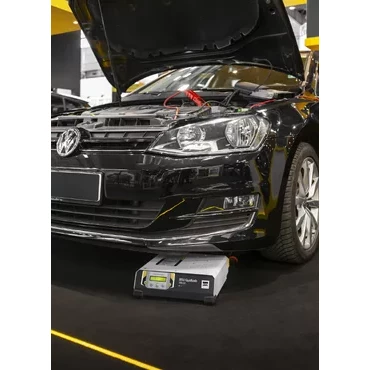

• Low height (< 11 cm): enabling the device to be placed under a vehicle.
• Showroom mode lock: avoids mishandling errors making it ideal for garages and showrooms.
• Automatic restart: automatically resumes the previous operating mode in the event of a power failure.

See the attached datasheet for more information.

Specifications

• Model: GYSFLASH 50.12 FV
• Family: CHARGERS
• Sub-family: CHARGERS – GYSFLASH PRO
• Catalogue: CHARGER
• Country of origin: FR
• EAN / GTIN-13: 3154020026056

Charger specifications

• Battery compatibility: Lead-acid and lithium-ion
• Battery voltage: 12 V
• Battery capacity range: 10–600 Ah
• Design: Inverter
• Power supply: Single-phase
• Input voltage: 230V, 110V

Dimensions & weight

• Net weight: 4.44 kg
• Dimensions (H×W×D): 10.5×29×30 cm
