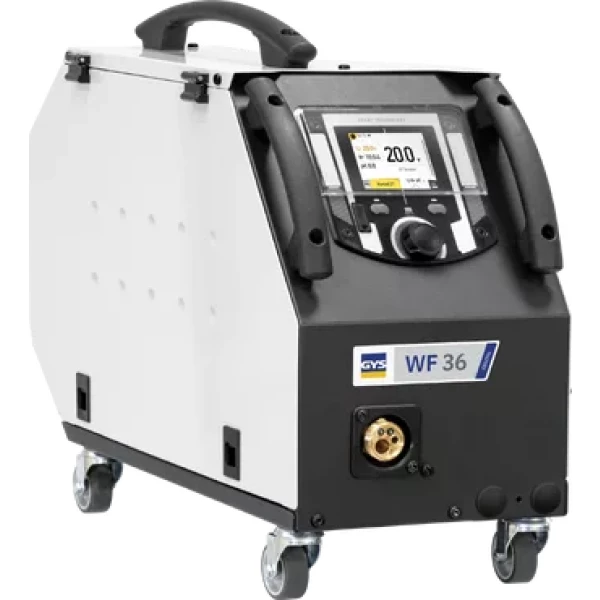

WF 36 AIR/WATER FEEDER

Description

Designed to work with GALAXY power sources, the WF 36 separate wire feeder has a very high duty cycle of 60% at 500 A. With 4 wire rollers, and an encoder control system, it delivers a smooth and accurate wire feed, for all types of material. It features an easy-to-use 3.5’’ colour screen and an intuitive interface with 2 display modes: Easy or Expert.

Intelligent

• +40 synergies for a variety of materials: steel, AlMg, AlSi, CrNi, CuSi.
• After entering 3 pieces of data: Wire diameter, material/gas, and workpiece thickness, the product automatically determines the optimum welding parameters.
• Full machine and synergy updates via USB stick.
• Stores up to 200 welding programs (Jobs) for recurring applications.
• Supplied without accessories Portability function: user JOBS and machine configuration can be loaded/saved/transported from a USB stick.
• Traceability of all welding beads to EN 3834.
• Calibration mode for welding accessories for adjusting the voltage displayed.
• User mode for sharing the unit with several other users.
• Free online tool for interface customisation.
• Intelligent wire feed with torch length management.

Ergonomic

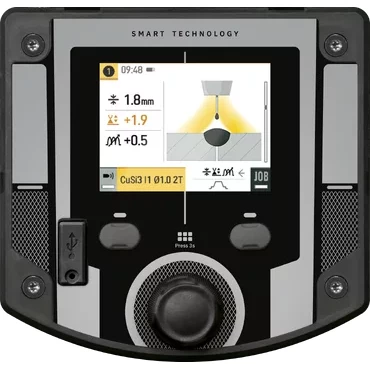

• Multilingual 3.5-inch colour interface.
• Compatible with air-cooled and liquid-cooled torches via the MIG-i interconnection cable.
• Optional flowmeter kit (073395) for precise control and adjustment of torch gas flow.
• Easy access to interconnection fittings with locking system.
• Torch holder for convenient storage of the MIG/MAG torch.
• Supplied with turret for mounting on power source.
• Large wheels for mobility.
• Protective cover to protect the control panel.
• Easy navigation, even when wearing welding gloves.

Specifications

• Model: DÉVIDOIR WF36
• Family: WELDING MACHINES AND PLASMA CUTTERS
• Sub-family: MIG – WIRE FEEDERS
• Catalogue: WELDING-CUTTING
• Country of origin: FR
• EAN / GTIN-13: 3154020082502

Welding parameters

• Design: Inverter

Dimensions & weight

• Net weight: 15.00 kg
• H × W × D: 51.7 × 32.6 × 58 cm

View on GYS | CE certificate | Datasheet
