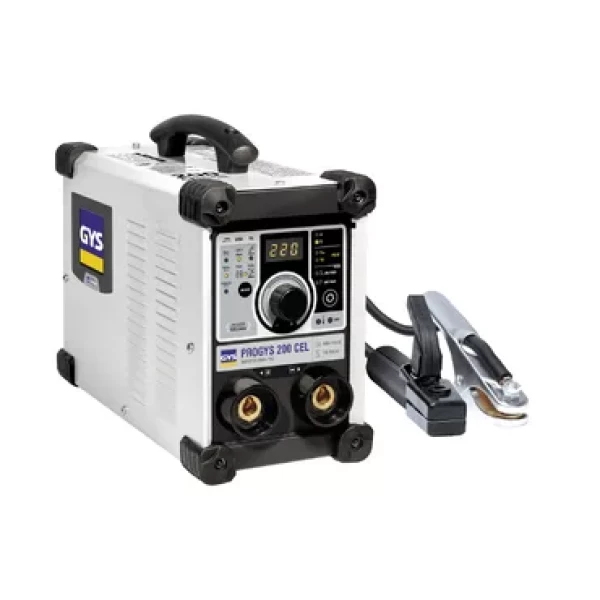

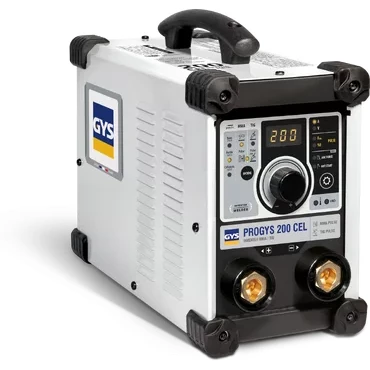

PROGYS 200 CEL – With accessories

Description

Designed specifically for professional use, the PROGYS 200 CEL combines the latest welding technology with an intuitive user interface. The dynamic ignition system means the machine can be used to reliably weld all types of electrodes up to 5 mm (rutile, basic and cellulosic), in vertical positions, either upwards or

3 Mma Welding Aids

• Adjustable Hot Start: facilitates ignition.
• Adjustable Arc Force: instantaneous current increase during difficult welding situations.
• Antisticking: reduces the risk of electrode sticking in the event of contact with the 35/50 mm² workpiece. Ø 13 mm Supplied with accessories

User Protection

• Choice of electrode type VRD (Voltage Reduction Device) can be activated to reduce the no- 4 welding modes available: load output voltage to < 35 V.
• RÉSISTANT Frequency Reinforced casing and anti-shock protection on all external surfaces.
• Protected against overvoltage up to 400 V (PROTEC 400).
• Cold current intensity % ULTRA PORTABLE ArcForce -10/+10 Lightweight (6.4 kg without accessories), compact and portable for HotStart % on-site use.
• Supplied with electrode holder (3 m) and earth cable (3 m).

Specifications

• Model: PROGYS 200 CEL
• Family: WELDING MACHINES AND PLASMA CUTTERS
• Sub-family: MMA INVERTER – PROGYS
• Catalogue: WELDING-CUTTING
• Country of origin: CN
• EAN / GTIN-13: 3154020082052

Welding parameters

• Main welding process: SMAW
• Welding process(es): GTAW DC
• Mains voltage: 230
• Power supply: Single-phase
• Design: Inverter
• TIG arc start: Lift
• MMA pulse: Yes
• TIG pulse: Yes
• Welding current min (A): 10
• Welding current max (A): 200
• Cooling: Air-cooled

Dimensions & weight

• Net weight: 6.40 kg
• H × W × D: 27.5 × 16.1 × 36.5 cm
