Orbitig 200A (Without R_Can 120R)

Description

Orbitig 200A (Without R_Can 120R)

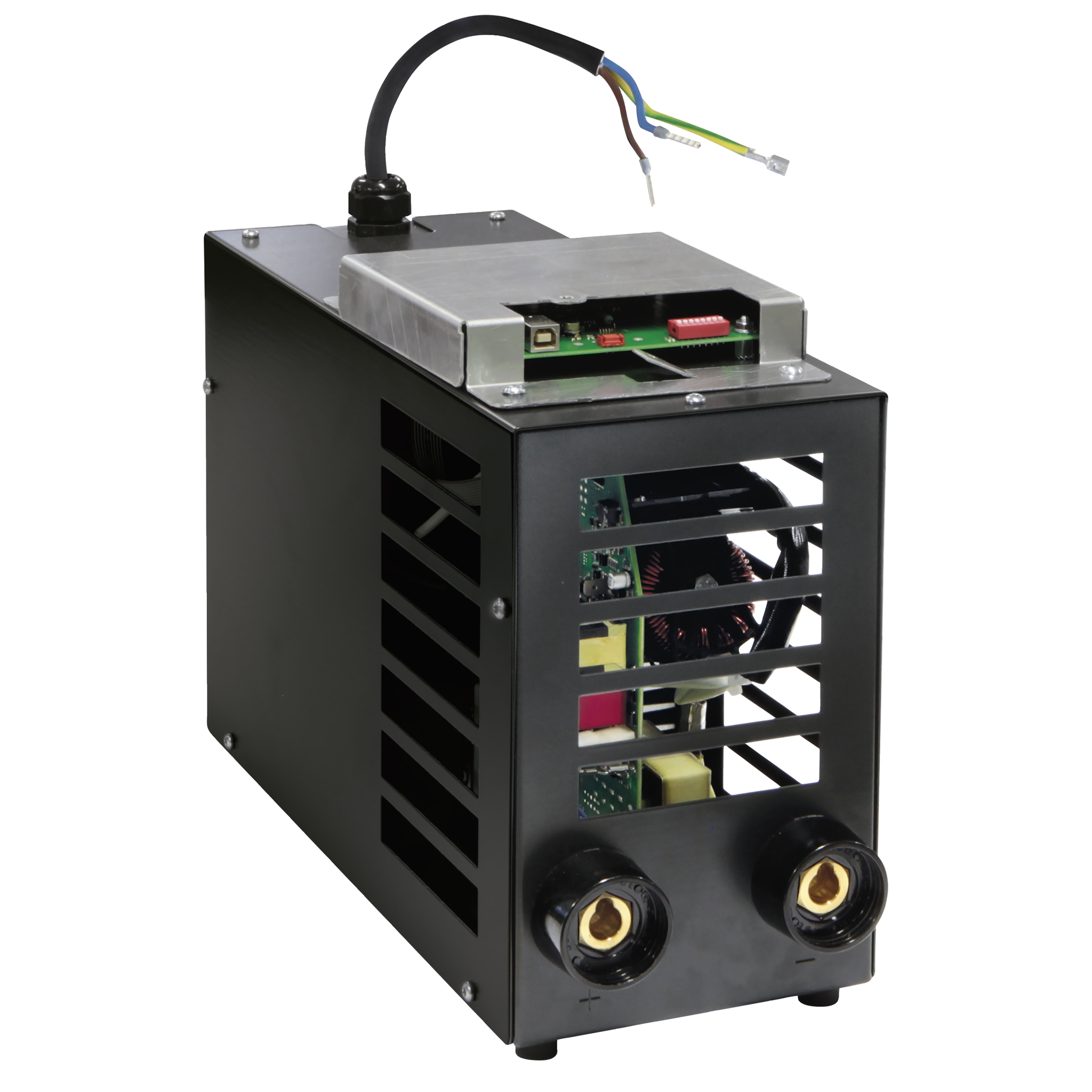

Orbitig 200A (Without R_Can 120R) – Designed for automated welding operations, the ORBITIG 200A is a welding machine operated by a CAN Bus. With inverter technology it benefits from the latest technical improvements in TIG welding. Compact, it will perfectly fit on robots, including on orbtital TIG welding machines.

FEATURES

Flexible Voltage power supply
This 220A machine will work on a single phase power supplyfrom 85 to 265 V.

PFC technology (Power Factor Correction)
The electrical power supply usage is optimised for up to 30% energy savings.

CAN OPEN communication protocol
Compliant with the CiA (CAN In Automation) requirements, this system offers a fast and reliable communication solution.

«TRACKING» mode
The welding machine receives and updates the current setpoint in realtime.

Highly precise and instantaneous data exchange
Welding status (ARC ON / ARC OFF).
Measure voltage and current (for energy control and arc length).
Protection mode in case of overvoltage, undervoltage, short circuit or arc stop.
Thermal protection information.

«HEIGHT CALIBRATION» mode
During the mass production of pipes, it is important to make sure that there is a constant height between the electrode and the pipe before starting the weld. To do so the welding machine features a vertical repositioning function which puts the electrode at a set height after contact.

2 types of strike
• HF without contact
• LIFT with contact for electro-sensitive environments

Secondary regulation – Regardless of the input voltage and changes in distance between the electrode and the metal, the machine ensures a stable arc for
optimum quality.

Click the Datasheet or Manual above for more infomation or conatct us at Info@optimotive.co.uk.
