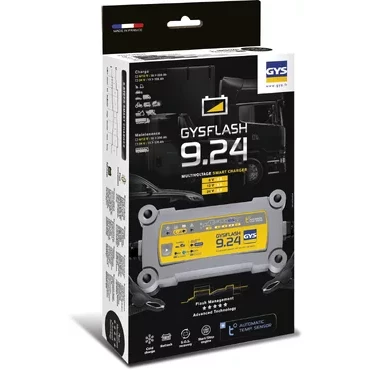

GYSflash 9.24 Charger – (Uk)

Description

The GYSFLASH 9.24 Charger is specifically designed to charge all types of’ 6, 12 and 24V batteries; for all vehicles. It features an 8 step intelligent charging curve for an optimal charge; as well as a «Refresh» mode to recover deeply discharged batteries.

THE IDEAL WORKSHOP CHARGER

• Designed to charge all type of vehicle batteries 6V, 12V and 24V :

– 6/12 V : 18 Ah to 220 Ah or for maintenance charging up to a 300 Ah.
– 24 V : 15 Ah to 125 Ah or for maintenance charging up to a 170 Ah.

• Refresh mode : Recovers deeply discharged batteries.
• Optimised maintenance charge, the charger can remain plugged in indefinitely during winter to maintain the health of the battery. «Auto Restart» feature so the charger can

restart automatically with the right settings after a power cut.

HIGH PERFORMANCE CHARGE

• The 8 step charging curve ensures maximum battery performance and longevity.
• External temperature sensor, for an optimal battery charge whether it’s summer

or winter. The charger adjusts the charging curve depending on ambient temperature.

• It recovers deeply discharged batteries (SOS Recovery ).

SAFETY / PROTECTION FOR VEHICLE ELECTRONICS

• Protection of the vehicle’s on-board electronics: protection against short circuits, polarity reversal and overcharging. Anti-spark technology.
• Protection against errors in voltage selection.
• Automatic stand-by mode if the battery is disconnected.
• Integrated temperature probe to prevent internal electronics’ overheating.
• Simplified interface to prevent user error.

ERGONOMIC

• Ultra-compact design, light and portable.
• Resistant to dust and water ingress (IP65 – not waterproof).
• Can be attached to a wall.

Please see the datasheet above for more information.

Specifications

• Model: GYSFLASH 9.24
• Family: CHARGERS
• Sub-family: CHARGERS – GYSFLASH
• Catalogue: CHARGER
• Country of origin: CN
• EAN / GTIN-13: 3154020029651

Charger specifications

• Battery compatibility: Lead-acid
• Battery voltage: 24 V
• Battery capacity range: 15–125 Ah
• Design: Inverter
• Power supply: Single-phase
• Input voltage: 230V

Dimensions & weight

• Net weight: 1.10 kg
