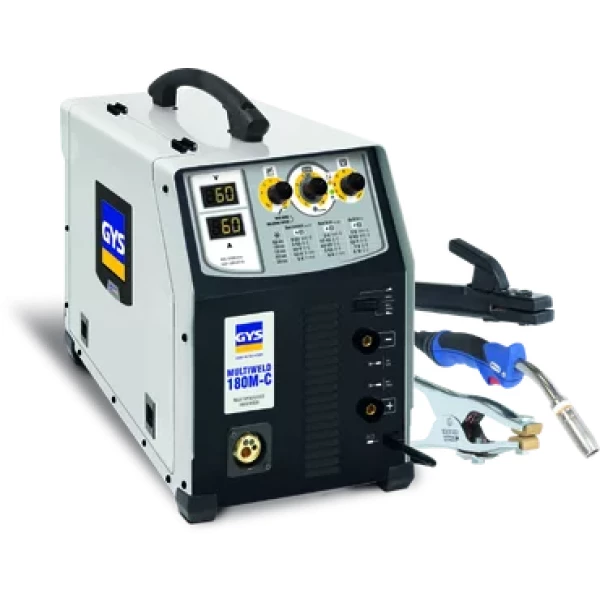

MULTIWELD 180M-C – WITH ACCESSORIES

Description

The MULTIWELD 180M-C is a compact single phase power source combining MIG/MAG, flux-cored gasless wire, and MMA welding processes. Its intuitive interface incorporates two digital displays offering simple and precise adjustments. Easily manouverable on site, it is suitable for welding steel, stainless steel, and aluminium

Multiprocess

• – steel wire: Ø 0.6 and 0.8 mm – stainless steel wire: Ø 0.8 mm – aluminium wire: Ø 0.8 and 1.0 mm – flux-cored wire (reverse polarity): Ø 0.6 and 0.9 mm Integrated Antisticking welding aid: reduces the likelihood of the electrode sticking when in contact with the workpiece.
• OPTIMISED MIG/MAG SETTINGS 4 rollers Manual adjustment of arc dynamics.
• Welding aid: table on the front panel to help the user to adjust the voltage Supplied and wire feed speed to best suit the thickness of the workpiece material.
• MIG15 – 3 m 2 m – 16 mm² 2 m – 16 mm² INTUITIVE + 1 contact tube 0.9 mm for gasless cored wire + 1 special nozzle Readable display, even in very bright conditions. + Spanner for contact tube Simple interface with buttons and thumbwheels suitable for + 1 m gas hose + 2 hose clips gloved hands, for easy adjustment.

Safety

• Advanced unit cooling with thermal protection.
• Overcurrent protection.
• PORTABLE A Arc dynamics Reinforced housing and anti-shock feet.
• B Compact and easy to transport on site (16.5 kg).
• C Welding voltage

Specifications

• Model: MULTIWELD 180M-C
• Family: WELDING MACHINES AND PLASMA CUTTERS
• Sub-family: MIG – MULTIWELD
• Catalogue: WELDING-CUTTING
• Country of origin: CN
• EAN / GTIN-13: 3154020078727

Welding parameters

• Main welding process: GMAW
• Welding process(es): SMAW FCAW
• Mains voltage: 230
• Power supply: Single-phase
• Design: Inverter
• Welding current min (A): 30
• Welding current max (A): 180
• Cooling: Air-cooled
• Wire feeder: Integrated

Dimensions & weight

• Net weight: 16.45 kg
• H × W × D: 45 × 28 × 53 cm
