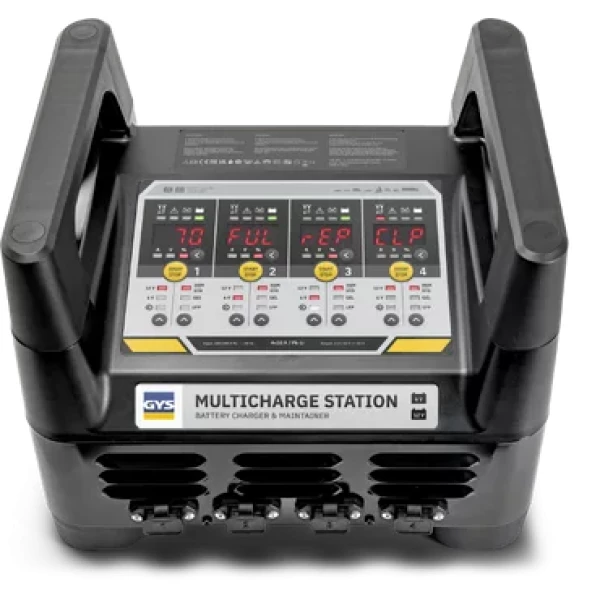

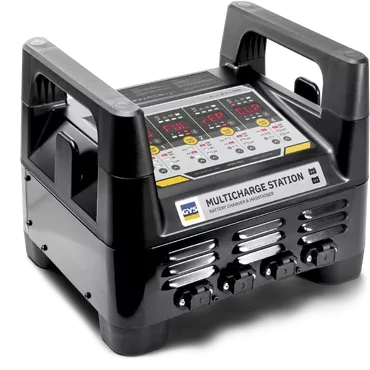

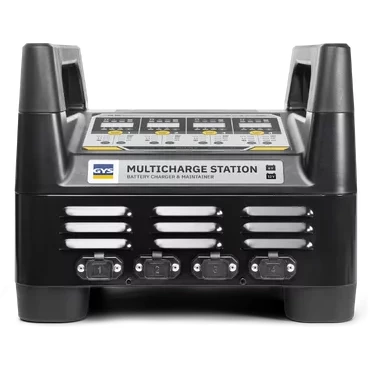

MULTICHARGE STATION 4x10A / Pb-Li

Description

The 4 x 10 A Multicharge Station is the ideal solution when you need to save time and space, without neglecting the health of your batteries. Designed to charge up to 4 batteries at the same time, it has two lead-acid charging curves: Standard / AGM and Gel, and a dedicated curve for charging Lithium (LiFePO4). Each output is totally independent, and capable of delivering up to 10 A for optimised charging, at either 6 V or 12 V.

Simultaneously Charge 4 Different Batteries

• With 4 independent 10 A outputs, the Multicharge Station can charge up to 4 different batteries at the same time: – Recharges all types of lead-acid batteries: standard / AGM / Gel, voltage 6 / 12 V, and capacity between 8 and 250 Ah. – Recharges Lithium LiFePO4 batteries, voltage 6/12 V, and capacity between 8 and 250 Ah.

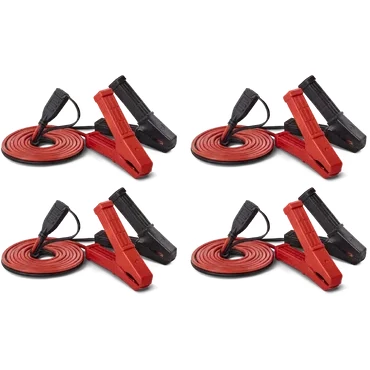

• Pb/Li Pb/Li Pb/Li Pb/Li 6/12 V 6/12 V 6/12 V 6/12 V 100% Removable 1.5 m cables The 4 x 10 A – Pb/Li multicharge station is controlled by a microprocessor that combines efficiency and safety.
• Its intelligent, automatic charging curve maximises battery life and performance.
• Repair mode: recovers deeply discharged and sulphated lead acid batteries.

Safe & Ergonomic

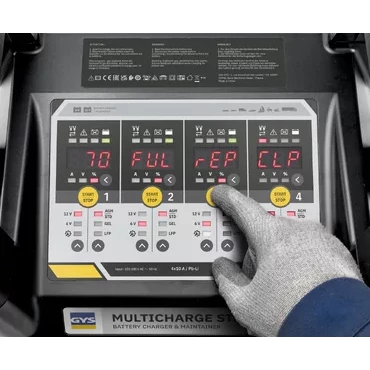

– P rotects the on-board electronics of the vehicle: protection against short- circuits and reverse polarity. – Robust, durable casing to deal with heavy-duty environments. – Intuitive interface: each output has a digital display showing the charge level and progress of the charging process in real time. – Easy to move: with two ergonomic handles for quick and easy transport. Digital display for each output 50  / 60 Hz Icharge  V  Charge Ch c a u r r g v i e ng  kg  mm IP    kg  mm 230 V AC 10 A 6-12 V 8 › 250 Ah IUU 6.3 360 x 300 x 7 380 x 345 x IP 20 1.5 m 1.5 m 0 300 315

Specifications

• Model: STATION MULTICHARGE 4x10A / Pb-Li
• Family: CHARGERS
• Sub-family: MULTICHARGER
• Catalogue: CHARGER
• Country of origin: CN
• EAN / GTIN-13: 3154020083578

Welding parameters

• Design: Inverter

Dimensions & weight

• Net weight: 5.86 kg
• H × W × D: 33 × 30 × 36 cm
