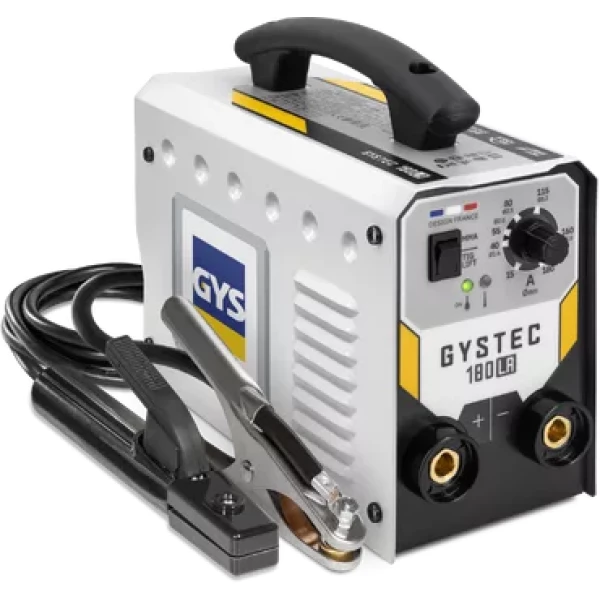

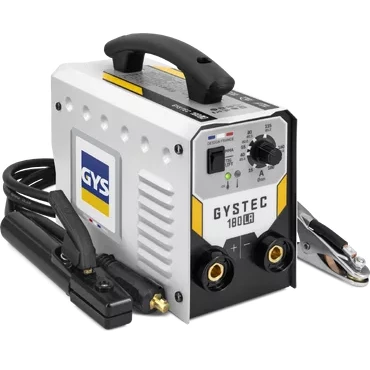

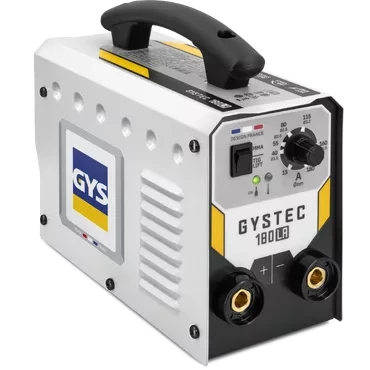

GYSTEC 180 LA – With case and accessories

Description

The GYSTEC 180 LA is a single-phase inverter welding machine offering 2 welding modes; MMA and TIG lift. Manufactured with the latest IGBT inverter technology, it has excellent ignition characteristics and guarantees arc stability. It provides professional quality welds on mild steel, cast iron, and stainless steel up

Inverter Technology

• Immediate ignition as a result of high open circuit voltage.
• Consistent welding power.
• Very smooth fusion due to constant current.
• Protected against overcurrent.

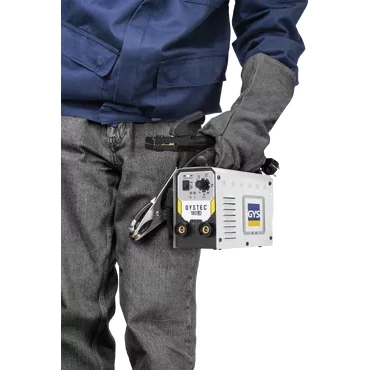

Ultra Portable

• Intuitive control panel with a Lightweight (3.7 kg). single potentiometer for welding Very compact design for easy storage almost anywhere (shelves, cabinets, etc.). current adjustment (15 >180 A) Single handle for comfortable movement.
• Compatible with generators.
• TIG17 valve torch – 4 m 087583 Integrated technology MMA TIG U

Specifications

• Model: GYSTEC 180 LA
• Family: WELDING MACHINES AND PLASMA CUTTERS
• Sub-family: MMA INVERTER – GYSTEC
• Catalogue: WELDING-CUTTING
• Country of origin: CN
• EAN / GTIN-13: 3154020083554

Welding parameters

• Main welding process: SMAW
• Welding process(es): GTAW DC
• Mains voltage: 230
• Power supply: Single-phase
• Design: Inverter
• TIG arc start: Lift
• Welding current min (A): 15
• Welding current max (A): 180
• Cooling: Air-cooled

Dimensions & weight

• Net weight: 3.68 kg
