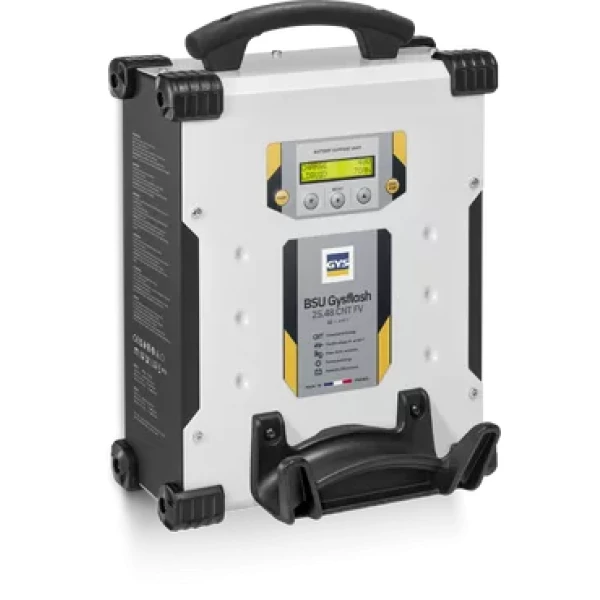

GYSFLASH 25.48 CNT FV (5m Cables)

Description

Specifically designed to be fitted on a wall or on a car lift, the vertical GYSFLASH 25.48 CNT FV is a 25 A high-power charger with inverter technology. It allows to keep a 6 V, 12 V, 16 V, 24 V, 36 V and 48 V lead or lithium battery («standard» + Lithium-ion + Lithium-Iron Phosphate) at a perfectly stabilized voltage during the diagnostic phases. It also guarantees optimum charging quality for the maintenance of the most advanced batteries, especially traction batteries. Its USB

4 Operating Modes

Charging: for / V Lead or Lithium batteries from 10 to 300 Ah.

• Diagnostic: supports up to 25 A vehicle batteries in diagnostic phase, in maintenance workshops.
• Showroom: provides continuous power when using the electrical accessories of a demonstration vehicle. It also manages the optimal charging of the battery.
• Tester: Allows you to check the battery voltage, evaluate the starting system (starter + battery) and the condition of the vehicle’s alternator. 100% CONNECTED
• Add, delete or modify charging modes and profiles via USB.
• Import predefined configuration files adapted to the load trades.
• Retrieve the charging history and data on a USB stick and use them on a spreadsheet.
• Connect additional modules (SLM, SPM, barcode reader, etc.) via its dedicated module socket (SMC: Smart Module Connector). Intuitive interface available in 22 languages

Automatic Charge

Specific charge curve Lead in 8 steps (9 steps in traction) or Lithium in 9 steps without supervision.

• Auto-Detect» and «Auto-Restart» functions automate charging when the battery is connected and during power cuts.
• Recovers deeply discharged batteries >2 V (automatic SOS Recovery).

Technologies & Advanced Functions

FV Flexible Voltage, the charger operates at a supply voltage of 85-265 V.

• Checking and calibrating the cables.
• Locking, avoids the risk of improper handling, ideal for garages and exhibition halls. CNT MODULES

Ergonomic

Compact and robust design with cable reel on the front.

• Optional wall mount with sliding system or magnetic (MagnetFix 50).

Specifications

• Model: GYSFLASH 25.48 CNT FV
• Family: CHARGERS
• Sub-family: CHARGERS – GYSFLASH PRO
• Catalogue: CHARGER
• Country of origin: FR
• EAN / GTIN-13: 3154020075962

Welding parameters

• Mains voltage: 230110
• Power supply: Single-phase
• Design: Inverter
• Automatable / robotisable: Yes
• Weld traceability: Yes

Charger

• Charge capacity: 10-300

Dimensions & weight

• Net weight: 5.50 kg
• H × W × D: 29 × 19 × 39.5 cm
