Description

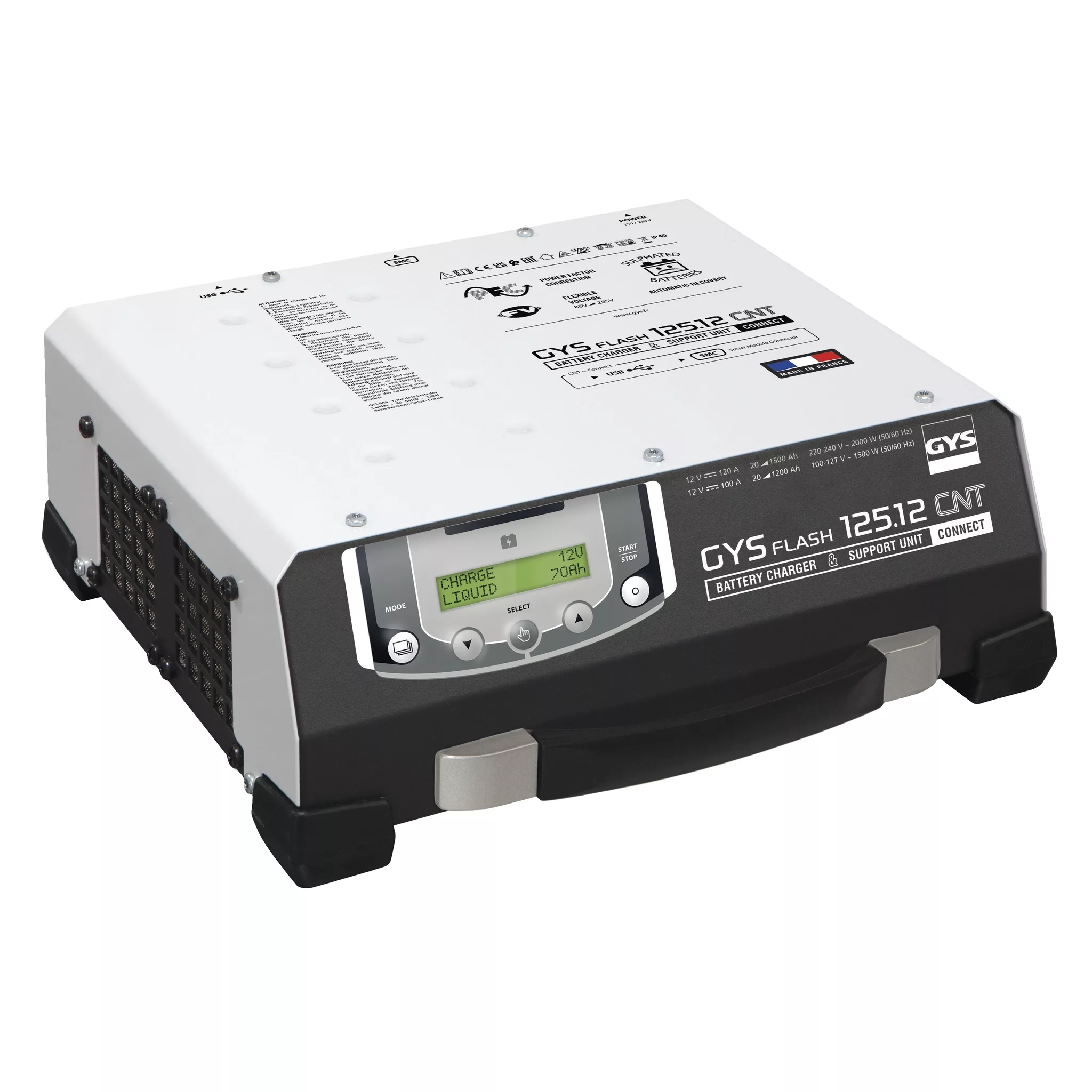

The GYSFLASH 125.12 Charger CNT FV is a high-powered CONNECTED charger: 120 A continuously at 25°C. It allows to keep a 12 V lead or lithium battery at a perfectly stabilized voltage during the diagnostic phases. It will deliver the best charging cycle recommended for the maintenance of the most advanced vehicles on the market. Its USB connectivity makes it 100% customizable.
4 OPERATING MODES
- Charging : for 12 V Lead or Lithium (LFP) batteries from 20 to 1500 Ah.

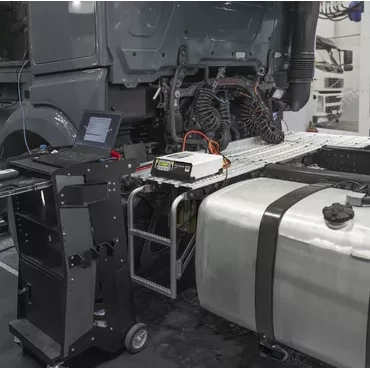

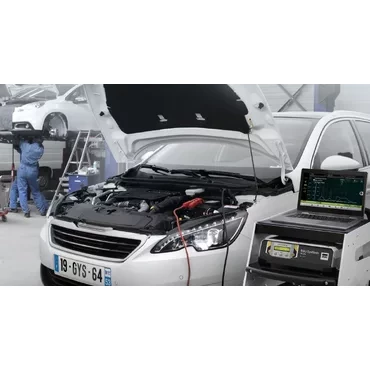

- Diagnostics : supports up to 120 A for 12 V batteries in vehicles in the diagnostic phase, in maintenance workshops.

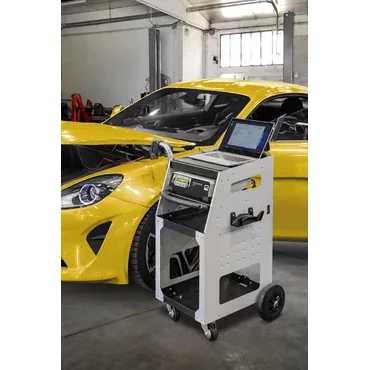

- Showroom : provides continuous power when using the electrical accessories of a demonstration vehicle. It also manages the optimal charging of the battery.
- Tester : Allows you to check the battery voltage, evaluate the starting system (starter + battery) and the condition of the vehicle’s alternator
100% CONNECTED
- Add, delete or modify charging modes and profiles via USB.
- Import predefined configuration files adapted to the load trades.
- Retrieve the charging history and data on a USB stick and use them on a spreadsheet.
- Connect additional modules (printer, barcode reader, etc.) via its dedicated module socket (SMC: Smart Module Connector).
AUTOMATIC CHARGE
- Extends the life and performance of Lead (gel, AGM, liquid, calcium, etc.) and Lithium (LFP) batteries.
- Specific charging curve in 8 steps (lead battery) or 9 steps (lithium-iron phosphate battery) without supervision.
- Recovers deeply discharged batteries >2 V (automatic SOS Recovery).
TECHNOLOGIES & ADVANCED FUNCTIONS
- FV Flexible Voltage, the charger operates with a supply voltage between 85 and 265 V.
- «Auto-Detect» function automatically starts a charge when a battery is connected to the charger.
- «Auto-Restart» function in the event of a power failure with memory of the settings.
- Control and calibration of cables
- Locking, avoids the risk of improper handling, ideal for garages and exhibition halls.
- Up to 12 charging profiles available, including the Easy profile for simplified charging suitable for all lead batteries.
ULTRA-SECURE
- Protection of the vehicle’s on-board electronics: protection against short circuits, polarity reversal and overcharging. Spark prevention system.
- Replaceable fuse which protects against misuse.
- Temperature sensor to prevent internal electronics overheating.
ERGONOMIC
- Durable case with shock and vibration absorbing pads.
- IP40 enclosure, protected against the intrusion of objects larger than 1 mm.

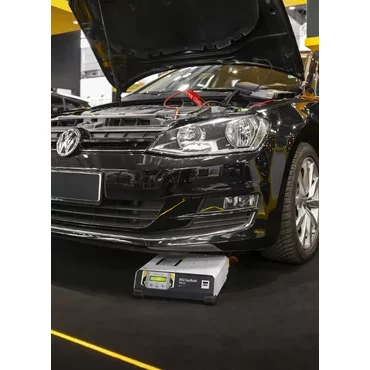

- Low height (13 cm) for the loader to pass under a vehicle
See the attached datasheet for more information.
Other Products
GYSFLASH 158.12 CNT FV
Also,
GYSFLASH 123.12 CNT FV (5.0m Cables)
Specifications
- Model: GYSFLASH 125.12 CNT FV
- Family: CHARGERS
- Sub-family: CHARGERS – GYSFLASH PRO
- Catalogue: CHARGER
- Country of origin: FR
- EAN / GTIN-13: 3154020028883
Charger specifications
- Battery compatibility: Lead-acid and lithium-ion
- Battery voltage: 12 V
- Battery capacity range: 20–1200 Ah
- Design: Inverter
- Power supply: Single-phase
- Input voltage: 230V, 110V
Dimensions & weight
- Net weight: 6.24 kg
- Dimensions (H×W×D): 13.5×33.5×31 cm
View on GYS | CE certificate | Datasheet | User manual
