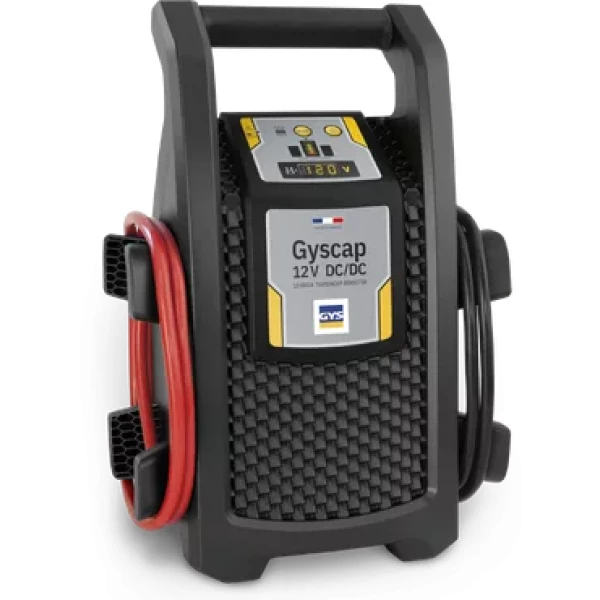

GYSCAP 12V DC/DC BATTERYLESS BOOSTER

Description

The GYSCAP 12 V DC/DC is a self-sufficient starter with no internal battery. The internal supercapacitors deliver high power output for reliable and safe starting (1600 A at 1V/C). It is maintenance-free: The integrated DC/DC inverter recharges the booster from the battery of the vehicle you are jumping in just a few seconds, then automatically recharges on the same vehicle once it is running, so you can use it many times in a row.

Needing A Power Supply Nearby

• 1 On a 12 V battery Recharging without mains power.
• The GYSCAP has a built-in DC/DC inverter capable of recharging the 2 min 30 max supercapacitors to a maximum of 50 A from the minimal residual voltage of a discharged battery.
• Once the engine has started, it also recharges fully automatically via the alternator. 2 From a cigarette lighter socket in a vehicle 4 min max Recharge during the time spent travelling to the location. 9 min max 3 With a Gysflash 4.12 (029422) or 12.12 (029392) 8 – 15 min max Charging from the mains. depending on model

Excellent Starting Performance

• With a starting current of 1600 A, it can be used to start all types of vehicle (petrol & diesel) fitted with a 12 V – 150 Ah (max) lead acid or lithium LFP battery. ‘SOS’ MODE FOR A This mode allows a vehicle to be started even when the battery is deeply discharged.
• Smart Starter Management System for an intuitive user experience bar graph Indicates the state of charge The integrated DC/DC inverter optimally manages the charging of the supercapacitors, while preser- of the supercapacitors ving the electrical system in the vehicle: – It monitors the voltage of the battery in the vehicle and adjusts the way it is charging, to ensure that the battery voltage does not fall below 8 V, thereby protecting the battery, and the data in the vehicle ECUs. – It regulates the energy used to recharge the supercapacitors (50 A max), to protect the alternator from overloading, without affecting the recharging time of the supercapacitors.
• The GYSCAP 12 V DC/DC is protected against polarity reversal / clamp short-circuits / undervoltage, and overvoltage.
• It protects all on-board electronics, the vehicle battery, the booster, and the user.

Unbeatable Performance

• LED display Always ready to go with rapid recharging. – Accurately indicates the voltage at the clamps of the battery and alternator of the vehicle Thousands of starts: start the ignition, let the booster recharge on the running engine – Assists the user with clear, intuitive messages then proceed to start as many vehicles as you like. throughout the start-up procedure.
• Maintenance-free: does not need to be kept charged when not in use.
• Always operational, even after years of storage.
• Unaffected by extreme temperatures (-40°C /+65°C).
• Long service life: it can be used 10,000 times with no loss of performance.
• INCLUDED 1.5 m charging cable for cigarette lighter socket

Specifications

• Model: GYSCAP 12V DC/DC
• Family: CHARGERS
• Sub-family: BOOSTER – GYSCAP
• Catalogue: CHARGER
• Country of origin: FR
• EAN / GTIN-13: 3154020087651

Dimensions & weight

• Net weight: 4.10 kg
• H × W × D: 42 × 19 × 28 cm
