Description

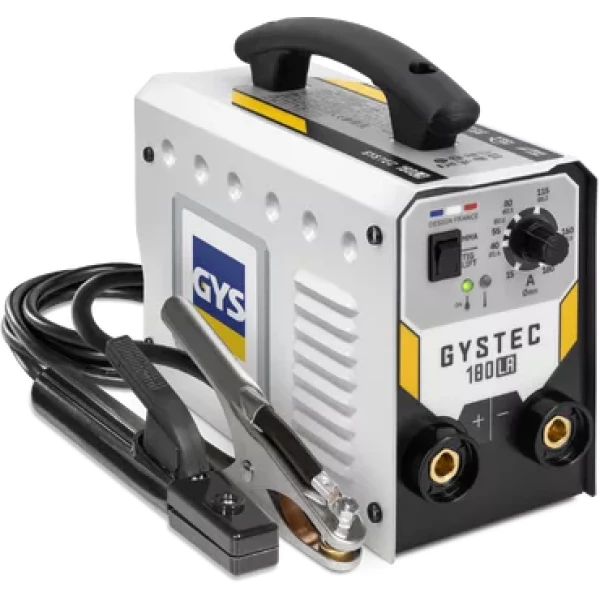

The GYSTEC 180 LA is a single-phase inverter welding machine offering 2 welding modes; MMA and TIG lift. Manufactured with the latest IGBT inverter technology, it has excellent ignition characteristics and guarantees arc stability. It provides professional quality welds on mild steel, cast iron, and stainless steel up
Inverter Technology
- Immediate ignition as a result of high open circuit voltage.
- Consistent welding power.
- Very smooth fusion due to constant current.
- Protected against overcurrent.
Welding Aids
- Supplied in a box with Hot Start: Easy ignition. 2 m 1.6 m Helmet 16 mm² 16 mm² Techno 11 Arc Force: Temporary surge of current during difficult welding situations Antisticking: Reduces the possibility of the electrode sticking when in contact with the workpiece.
- Techno 11 welding helmet ULTRA PORTABLE Field of vision: 98 x 35 mm Light shade 3: excellent visibility when clear for Lightweight (3.7 kg). welding preparation Very compact design for easy storage almost anywhere (shelves, Dark shade 11 cabinets, etc.).
- Fast darkening speed: 0.6 ms Single handle for comfortable movement.
- TRUE COLOR technology Compatible with generators.
- More info TIG17 valve torch – 4 m 087583 Integrated technology MMA TIG U
Specifications
- Model: GYSTEC 180 LA
- Family: WELDING MACHINES AND PLASMA CUTTERS
- Sub-family: MMA INVERTER – GYSTEC
- Catalogue: WELDING-CUTTING
- Country of origin: CN
- EAN / GTIN-13: 3154020084919
Welding parameters
- Main welding process: SMAW
- Welding process(es): GTAW DC
- Mains voltage: 230
- Power supply: Single-phase
- Design: Inverter
- TIG arc start: Lift
- Welding current min (A): 15
- Welding current max (A): 180
- Cooling: Air-cooled
Optical / helmet
- Auto-darkening filter: Yes
Dimensions & weight
