GYS Wheel Lift With Winch

Description

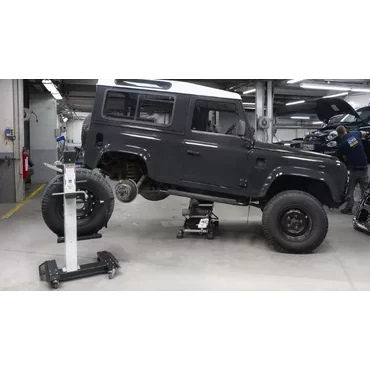

GYS Wheel Lift With Winch – The Manual Wheel Lift has been designed to reduce musculoskeletal disorders (MSDs) related to wheel handling. Designed to improve the daily life of professionals, it minimizes the effort required during lifting. Its elaborate design allows a safe and compatible use with all types of handling.

ERGONOMIC AND ESSENTIAL IN AUTOMOTIVE WORKSHOPS

• Working height : up to 140 cm (at hub)
• Trolley capable of supporting a 40 kg wheel
• Winch wheel lift:
  Autonomous system without power supply
  Precise ability of alignment of the wheel to hub and simplified instertion of the wheel nuts
  Equipped with a self-locking brake
• Easy handling and movement thanks to itsswivel wheels and twin handles
• Twin-roller carriage allowing rotation of the wheel for easy alignment with hub fixings
• Inclination of the trolley and strap to prevent the wheel from tipping over during lifting or movement
• The short legs are designed for compatibility with most lifts
• Two ramps allow the wheel to be rolled into place with relative ease
• Rear wheels are equipped with brakes to stabilize the wheel lift while handling

TECHNICAL SPECIFICATIONS

Dimensions – 64 x 135 x 84 cm
Weight – 42 kg
Maximum height – 103 cm
Maximum Load – 40 kg
Minimum wheel size – 135 / 65 R13
Maximum wheel size – 300 / 35 R22

Please click the Datasheet or Manual above if you require more infomation or contact us at Info@optimotive.co.uk.

Click here to see other products related to this one

Stock Source and Supplied By GYS:

Specifications

• Model: WHEEL LIFT
• Family: CAR BODY MACHINES
• Sub-family: LIFTING
• Catalogue: CAR BODY
• Country of origin: FR
• EAN / GTIN-13: 3154020061385

Dimensions & weight

• Net weight: 38.50 kg
