Description

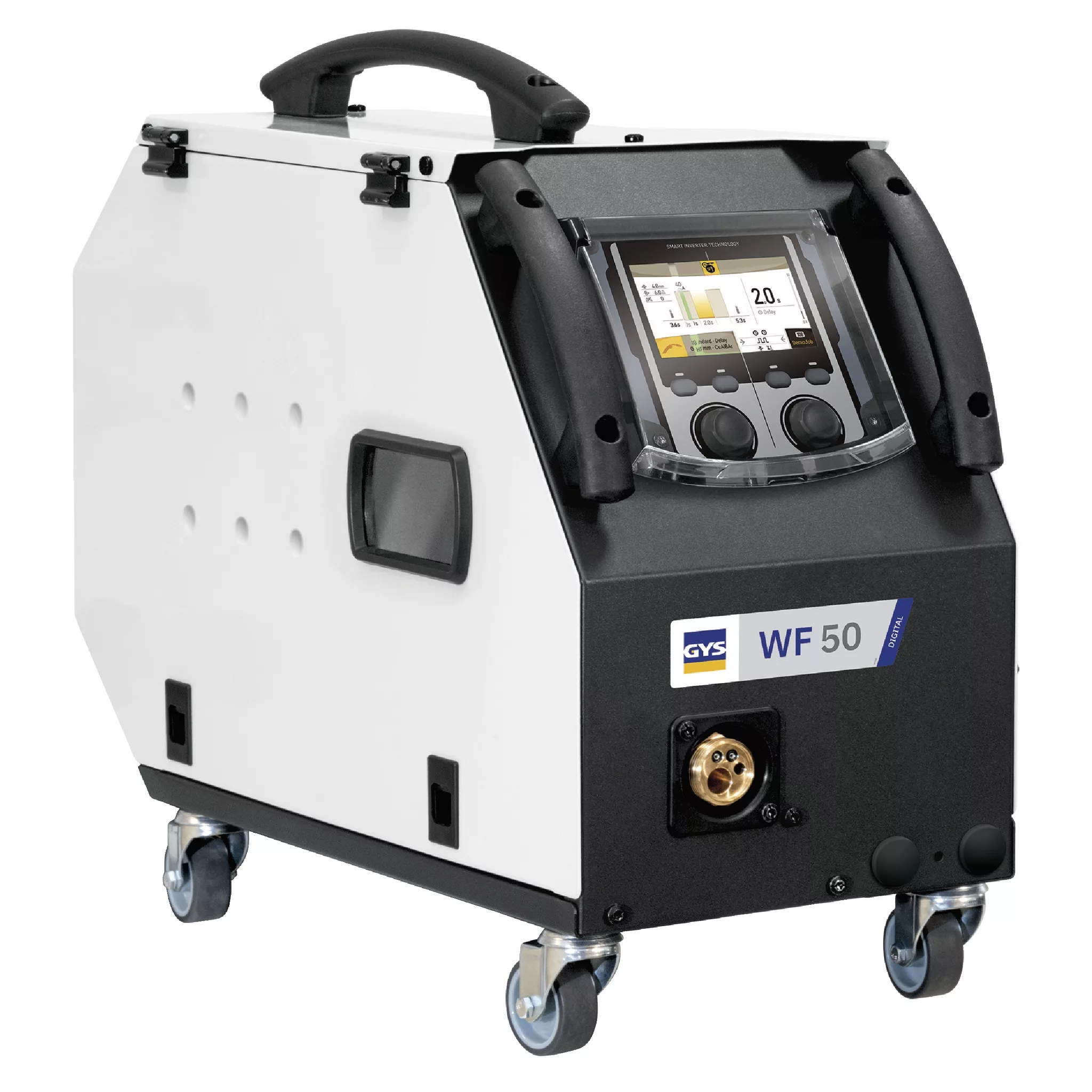

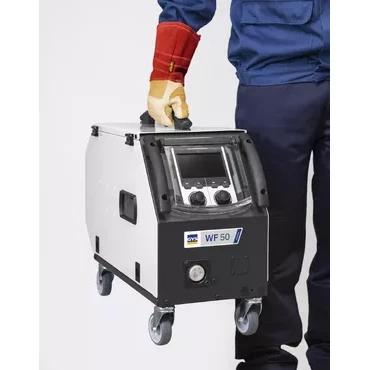

WATER COOLED WIRE FEEDER WF 50 – Designed to work with KRONOS and NEOMIG-i power sources, the WF 50 portable wire feeder has an impressive duty cycle of 60% at 500A. The 4 roller feed system and encoder controls provide a precise and smooth wire feed for all types of materials. The 5» colour screen is easily accessible and the interface is very intuitive, with 2 distinct display modes: Easy or Expert.
INTELLIGENT
- Synergies: Steel, AlMg, AlSi, CrNi, CuSi.
- After entering 3 pieces of data: Wire diameter, material/gas, and thickness of the workpiece, the product automatically determines the optimal welding parameters.
- Full machine software and synergy updates via USB stick.
- Storage of up to 200 welding programs (Jobs) for recurring tasks.
- Portability function, ability to load/save/transport user JOBS and machine configuration via USB stick.
- Traceability of all weld beads according to EN 3834.
- Calibration procedure for welding accessories allows adjustment of the voltage displayed to ensure parameter accuracy.
- User mode for allocating the product between several operators.
- Free online tool for interface customisation.
- Intelligent wire loading with torch length management.
SUPERIOR WELDING
- Duty cycle 500 A at 60%.

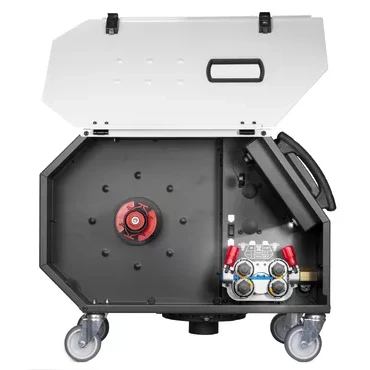

- 4 roller driven motor reel with digital encoder for perfect feeding.
ERGONOMIC

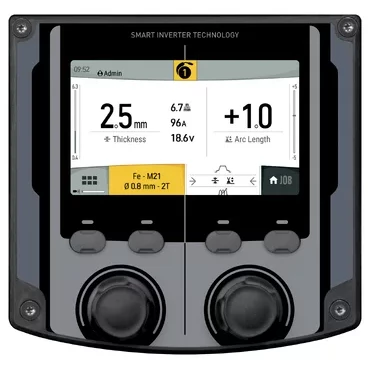

- Multilingual 5’’ colour interface.
- Compatible with air and liquid cooled torches with the MIG-i interconnection cable.
- Push-Pull torch connection option (078741).
- Led lighting of the feed motor and spool.
- Viewing window to monitor wire consumption.
- Large roller diameter (Ø 37mm) for optimal wire delivery.
- Quick-change rollers with no need for tools.
- Colour coded rollers to easily differentiate wire diameter.
- Optional flowmeter kit (073395) for precise control and regulation of the gas flow of the torch.

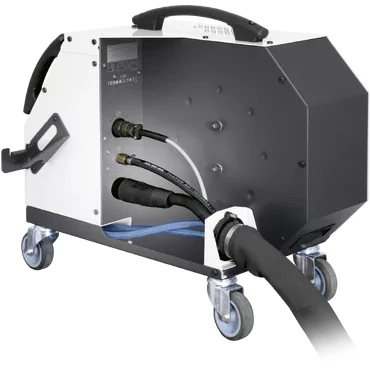

- Easy access to interconnection cable terminals with locking system.
Click here to see other products related to this one
Stock from GYS – A brand with professionals at the front of all their designs.
Specifications
- Model: DÉVIDOIR WF50
- Family: WELDING MACHINES AND PLASMA CUTTERS
- Sub-family: MIG – WIRE FEEDERS
- Catalogue: WELDING-CUTTING
- Country of origin: FR
- EAN / GTIN-13: 3154020075108
Welding parameters
- Design: Inverter
- Main welding process: GMAW
Dimensions & weight
- Net weight: 16.50 kg
- Dimensions (H×W×D): 52×33×60 cm
