Water Cooled Wire Feede Wf 35

Description

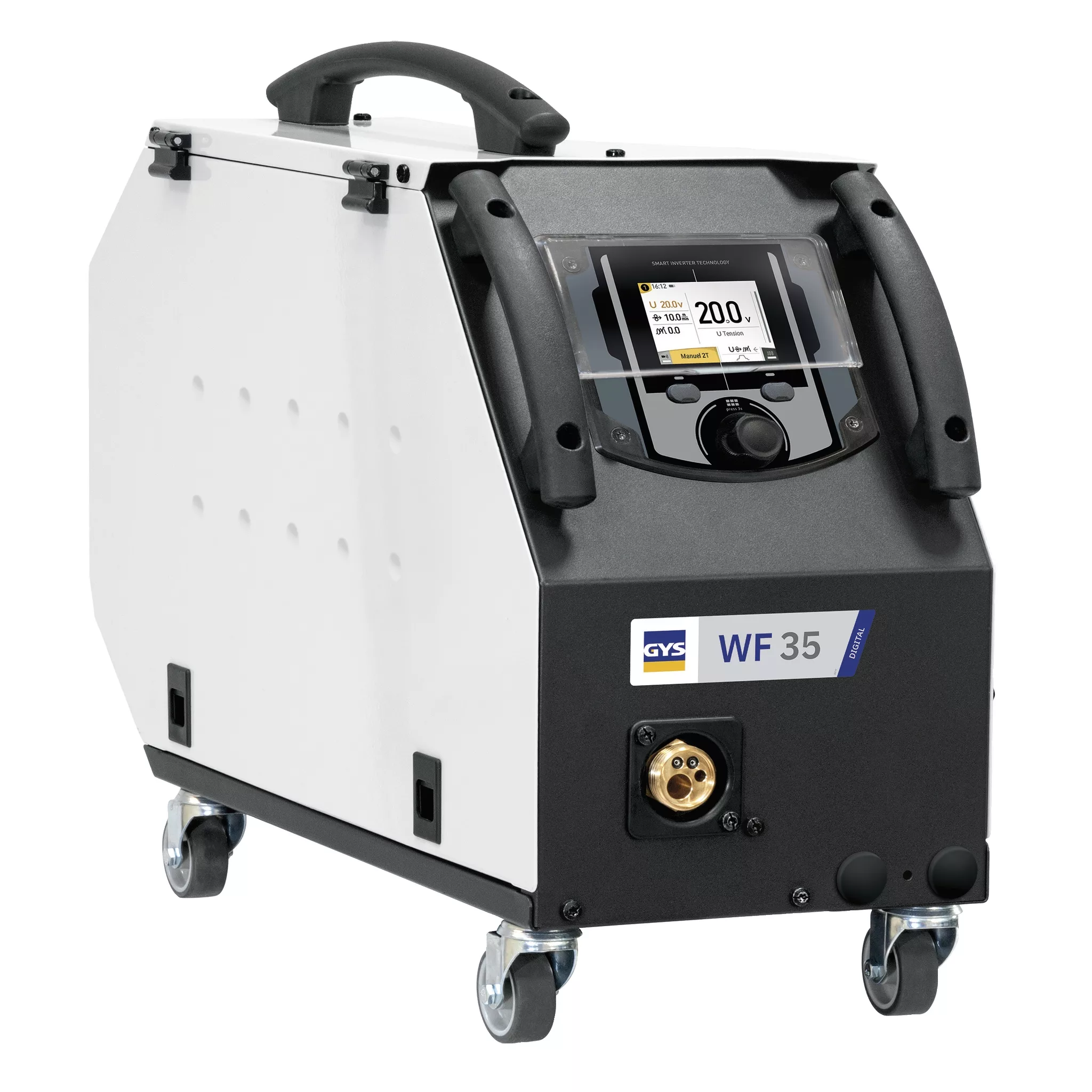

Water Cooled Wire Feeder WF 35 – Designed to work with KRONOS and NEOMIG-i power sources, the WF 35 portable wire feeder has an impressive duty
cycle of 60% at 500A. The 4 roller feed system and encoder controls provide a precise and smooth wire feed for all types of materials. The 3.5» colour screen is easily accessible and the interface is very intuitive, with 2 distinct display modes: Easy or Expert.

PERFORMANCE
MIG/MAG:
– steel and stainless steel wire: Ø 0.6 to 1.2mm
– aluminium wire: Ø 0.8 to 1.2mm
– CuSi and CuAl wire: Ø 0.8 to 1.0mm
– flux-cored wire (inverted polarity) : Ø 0.9 to 1.6mm

INTELLIGENT
Synergies: Steel, AlMg, AlSi, CrNi, CuSi.
After entering 3 pieces of data: Wire diameter, material/gas, and thickness of the workpiece, the product automatically determines the optimal welding parameters.
Full machine software and synergy updates via USB stick.
Storage of up to 200 welding programs (Job) for recurring tasks.
Portability function, ability to load/save/transport user JOBS and machine configuration via USB stick.
Calibration procedure for welding accessories in order to correct the voltage displayed.
Free online tool for interface customisation.
Intelligent wire loading with torch length management.

SUPERIOR WELDING
Duty cycle 60% at 500A.
4 roller wire feed motor with digital encoder for effective feeding.

ERGONOMIC

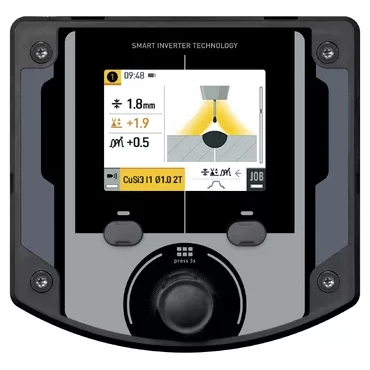

Multilingual 3.5’’ colour interface.
Compatible with air and liquid cooled torches with the MIG-i interconnection cable.
Optional flowmeter kit (073395) for precise control and adjustment of torch gas flow.
Easy access to interconnection cable terminals with locking system.

Click here to see other products related to this one

Stock from GYS – A brand with professionals at the front of all their designs.

Specifications

• Model: DÉVIDOIR WF35
• Family: WELDING MACHINES AND PLASMA CUTTERS
• Sub-family: MIG – WIRE FEEDERS
• Catalogue: WELDING-CUTTING
• Country of origin: FR
• EAN / GTIN-13: 3154020075078

Welding parameters

• Design: Inverter
• Main welding process: GMAW

Dimensions & weight

• Net weight: 15.00 kg
• Dimensions (H×W×D): 51.7×32.6×58 cm
