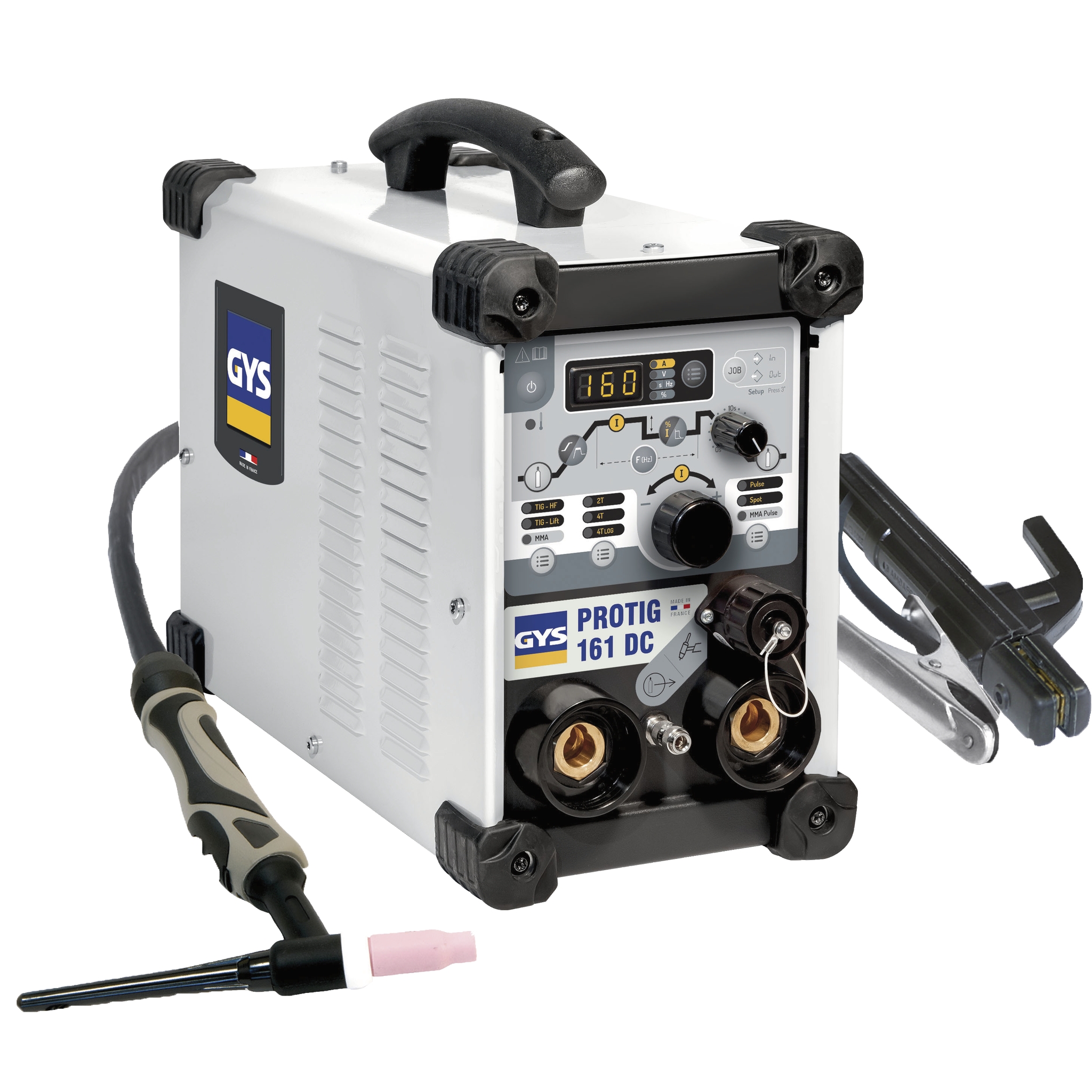

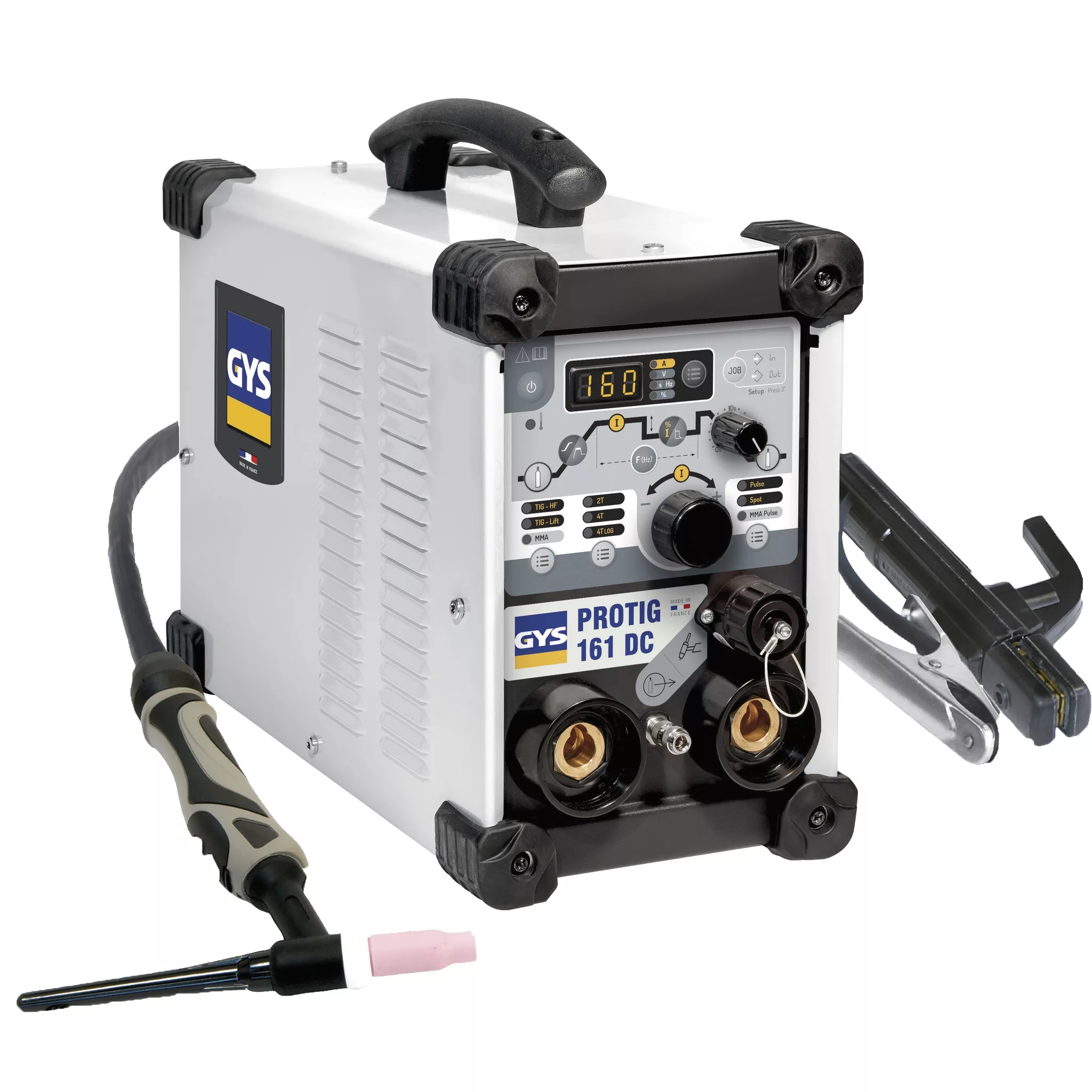

Protig 161 Dc – With Accessories (Sr17Db-4M)

Description

Protig 161 Dc – With Accessories (Sr17Db-4M) – Ultra-compact and designed for craftsmen, the PROTIG 161 DC (160 A) ensures high quality welding on mild and stainless steels thanks to its advanced secondary regulation. Its ergonomic interface makes settings adjusment easy and intuitive.

OPTIMISED DC WELDING

Secondary regulation:ensures optimum arc stability and constant current in all positions.
TIG DC : provides quality welding on all ferrous materials such as steel, stainless steel but also copper and its alloys…
TIG DC Pulse : controls the temperature of the molten bath, limits deformation and thus allows the assembly of thin sheets from 0.3 mm.
SPOT : Fast and precise spot welding, ideal before welding thin sheet metal.
2 types of start-up : HF (without contact) or LIFT (with contact) for electro sensitive environments.
3 trigger modes : 2T, 4T and 4T LOG.
Automatic torch detection: compatible with latch torches and double button.

MMA WELDING

MMA : Basic and Rutile electrodes (up to Ø 4 mm)
Pulse : helps welding in a vertical upright position (pipes/pipeline…)
3 integrated welding supports:
1- Antisticking : reduces the risk of the electrode sticking if it comes into contact with the workpiece.
2- Hot Start : makes the arcing easier and can be adjusted in seconds according to the type of metal
3- Arc Force : Punctual increase of the current in difficult welding situations.

INTUITIVE

Displays current/voltage during and after welding (WPS/PQR).
Save 10 programs for each process, for a perfect reproducibility of your welds.
Intelligent ventilation management to reduce power consumption, dust extraction and substation noise.

STURDY

Reinforced body and shockproof rubber pads on the corners.
Light (7.5 kg), compact and easy to move on-site.
Protected against overvoltage up to 400 V (PROTEC 400).

Click the Datasheet or Manual above for more infomation or conatct us at Info@optimotive.co.uk.

Click here to see other products related to this one

Stock from GYS – A brand with professionals at the front of all their designs.

Specifications

• Model: PROTIG 161 DC
• Family: WELDING MACHINES AND PLASMA CUTTERS
• Sub-family: TIG – PROTIG AC/DC
• Catalogue: WELDING-CUTTING
• Country of origin: FR
• EAN / GTIN-13: 3154020062054

Welding parameters

• Design: Inverter
• Power supply: Single-phase
• Input voltage: 230V
• Main welding process: GTAW DC
• Welding current range: 10–160 A

Dimensions & weight

• Net weight: 7.70 kg
• Dimensions (H×W×D): 21×29.5×12.5 cm
