ProGYS 200A Pfc

Description

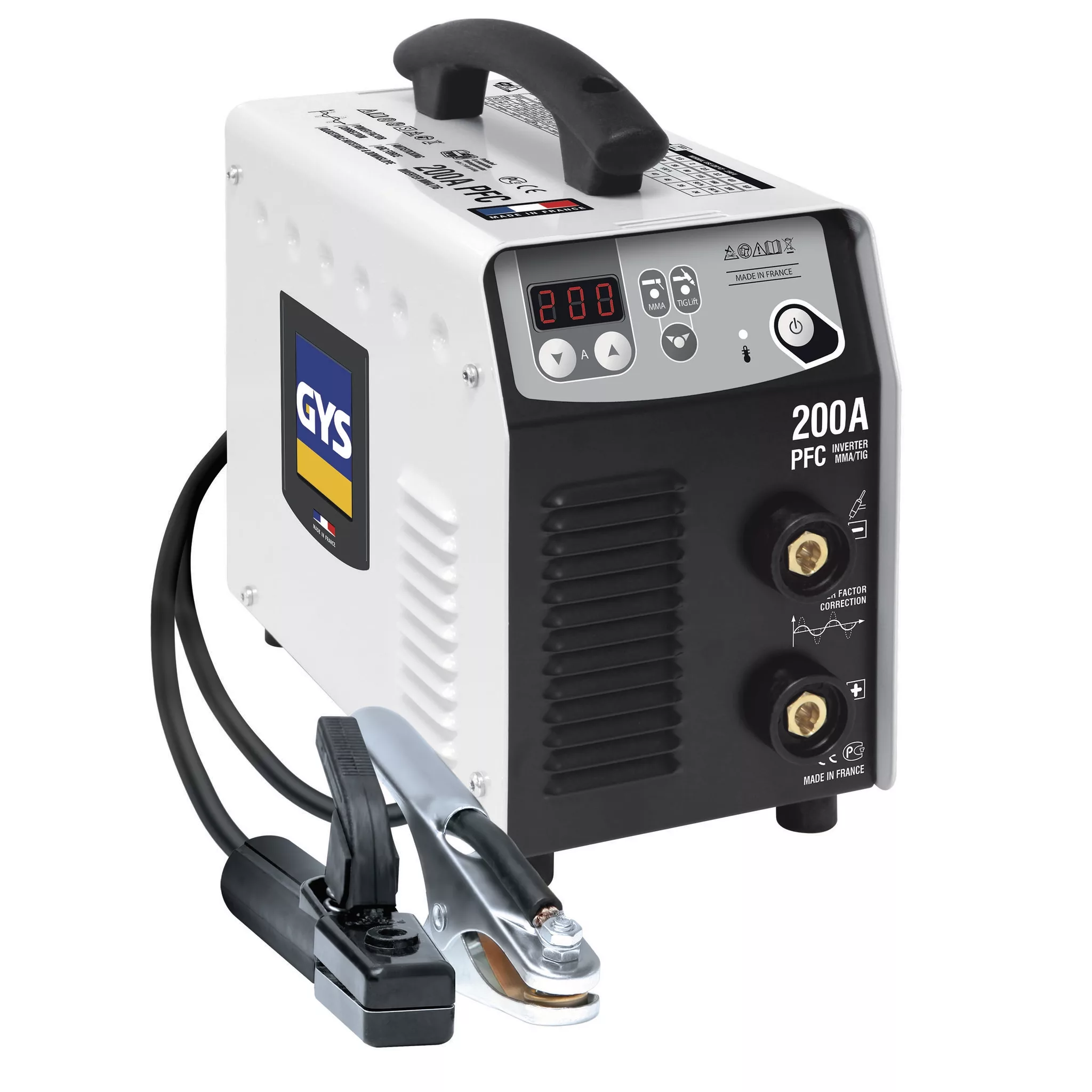

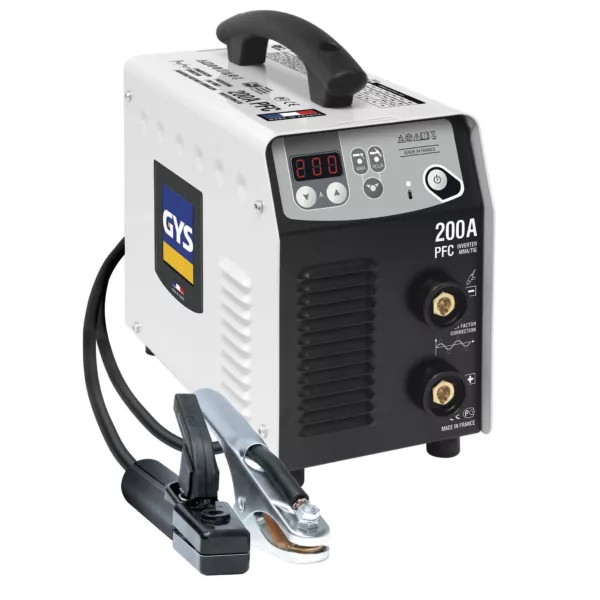

ProGYS 200A Pfc – is a versatile Inverter stick welding (MMA) and TIG machine, controlled by micro-processor with touchpad and digital screen. It is designed for professional use.

Stick welding – MMA (200 A)

With its high duty cycle the PROGYS 200A PFC is suitable for intensive use with any type of electrode from Ø 1.6 to 5 mm : rutile, basic, steel, stainless steel and cast iron. Designed with Anti-Sticking, Hot start and adjustable Arc Force technology the machine is easy to use and to achieve excellent welding results.

TIG LIFT (200 A)

Strike without polluting the tungsten electrode. Automatic downslope with adjustable time for a better welding finish.

PFC Technology

PFC regulates and effectively use the supply current which enables the unit to operate on a single phase 16A 230V outlet, even intensive use, whereas
32A-230V may be requried for the same output without PFC. This machine is capable of being used with long extension leads (up to 100m).

Duty cycle

Capable of welding 45 Ø3.2 mm electrodes in 1h.
100% duty cycle up to 120 A (at 20°).

Handy

Lightweight (~6 kg) and compact.

Click the Datasheet or Manual above for more infomation or conatct us at Info@optimotive.co.uk.

Click here to see other products related to this one

Stock from GYS – A brand with professionals at the front of all their designs.

Specifications

• Model: PROGYS 200A PFC
• Family: WELDING MACHINES AND PLASMA CUTTERS
• Sub-family: MMA INVERTER – PROGYS
• Catalogue: WELDING-CUTTING
• Country of origin: FR
• EAN / GTIN-13: 3154020031432

Welding parameters

• Design: Inverter
• Power supply: Single-phase
• Input voltage: 230V
• Main welding process: SMAW
• Welding current range: 10–200 A

Dimensions & weight

• Net weight: 5.68 kg
• Dimensions (H×W×D): 26×30×14 cm
