Multiweld Fv 220M-C

Description

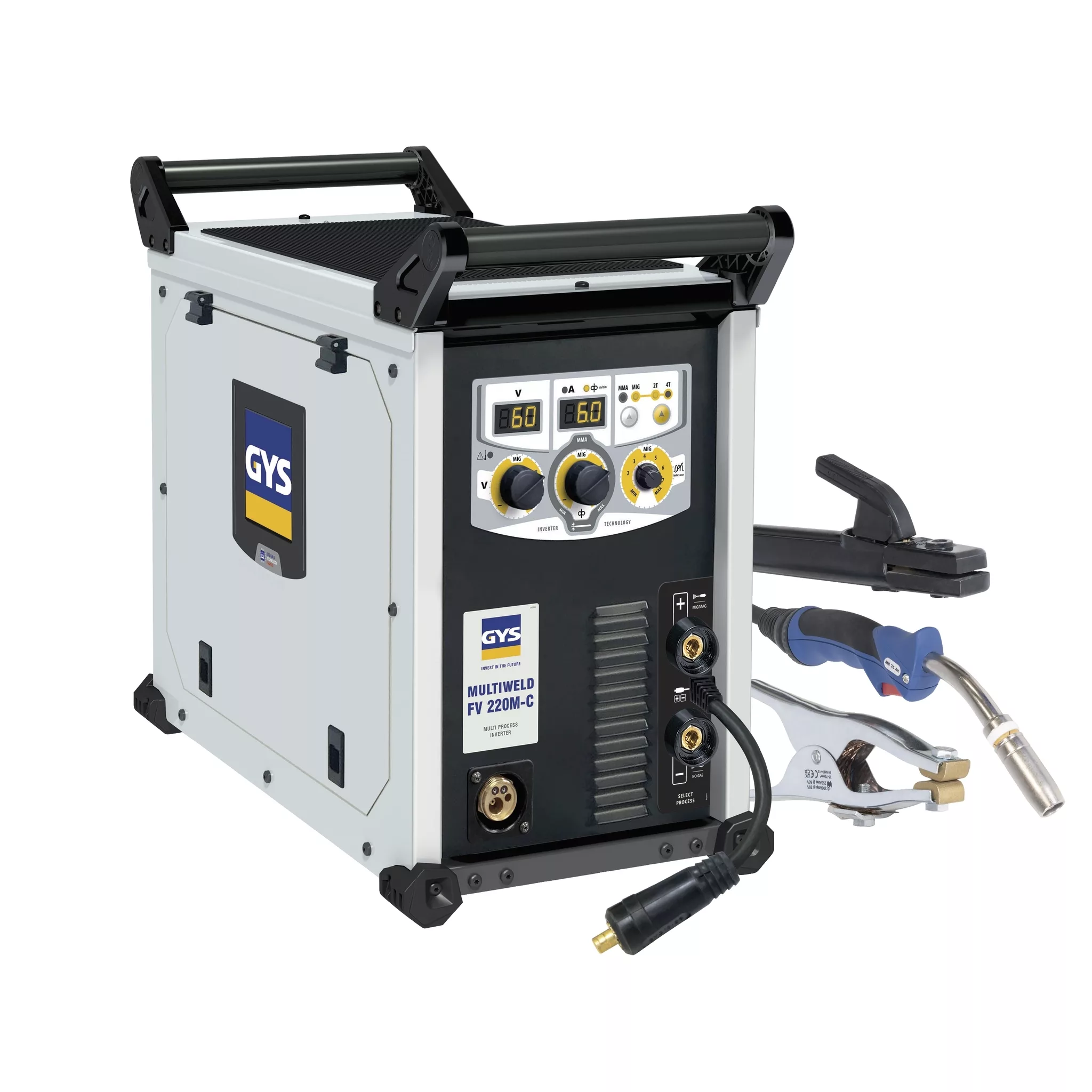

Multiweld Fv 220M-C – is a compact single-phase welding machine, combining MIG/MAG, cored wire and MMA welding processes. It operates on a supply voltage between 85 and 265 V thanks to its FV (Flexible Voltage) power supply. Equipped with an accurate 4-roller wire feeder system and a reinforced structure with 2 handles for lifting and slinging, it is ideal for welding in the workshop and for quick troubleshooting on site.

MULTIPROCESS

MIG/MAG welding :
– steel wire: Ø 0.6 to 1.0 mm
– stainless steel wire: Ø 0.8 to 1.0 mm
– aluminium wire: Ø 0.8 and 1.0 mm
– cored wire (reverse polarity): Ø 0.9 to 1.2 mm
MMA welding: basic and rutile electrodes (up to Ø 5 mm).

OPTIMISED MIG/MAG SETTINGS

Choice of the trigger mode: 2T or 4T.
Welding guide: tables assist the user to adjust and fine tune the voltage and the
diameter of the filler wire according to the thickness of material being welded.

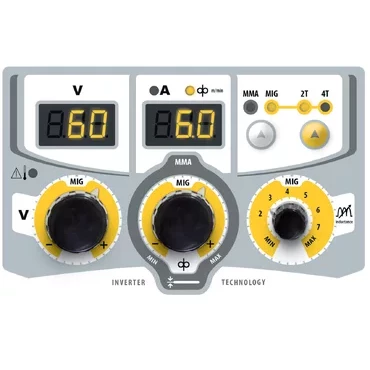

INTUITIVE

Display readable even in bright light.
Simple user interface with ergonomic controls allowing gloved use.

INTEGRATED WIRE FEEDER

Compatible with reels : Ø 200 / 300 mm
Wire feeder with 4 rollers for an efficient wire feeding.
EURO torch connector for quick assembly/disassembly.

PRE-HEATING, PURE CO2

Pre-installed socket (36 V – 4.2 A) for gas heater in pure CO2 welding
(heater not included).
Compatible with US (type A) and EURO electrical sockets (type C/E/F).

ROBUST

IP 23 classification for outside use.
Accepts very long extension cords (100 m).
2 steel handles for easy manipulation.
Protected against overvoltage up to 400 V (PROTEC 400).

Click the Datasheet or Manual above for more infomation or conatct us at Info@optimotive.co.uk.

Click here to see other products related to this one

Stock from GYS – A brand with professionals at the front of all their designs.

Specifications

• Model: MULTIWELD FV 220M-C
• Family: WELDING MACHINES AND PLASMA CUTTERS
• Sub-family: MIG – MULTIWELD
• Catalogue: WELDING-CUTTING
• Country of origin: CN
• EAN / GTIN-13: 3154020065499

Welding parameters

• Design: Inverter
• Power supply: Single-phase
• Input voltage: 230V, 110V
• Main welding process: GMAW
• Welding current range: 30–220 A

Dimensions & weight

• Net weight: 22.00 kg
