Description

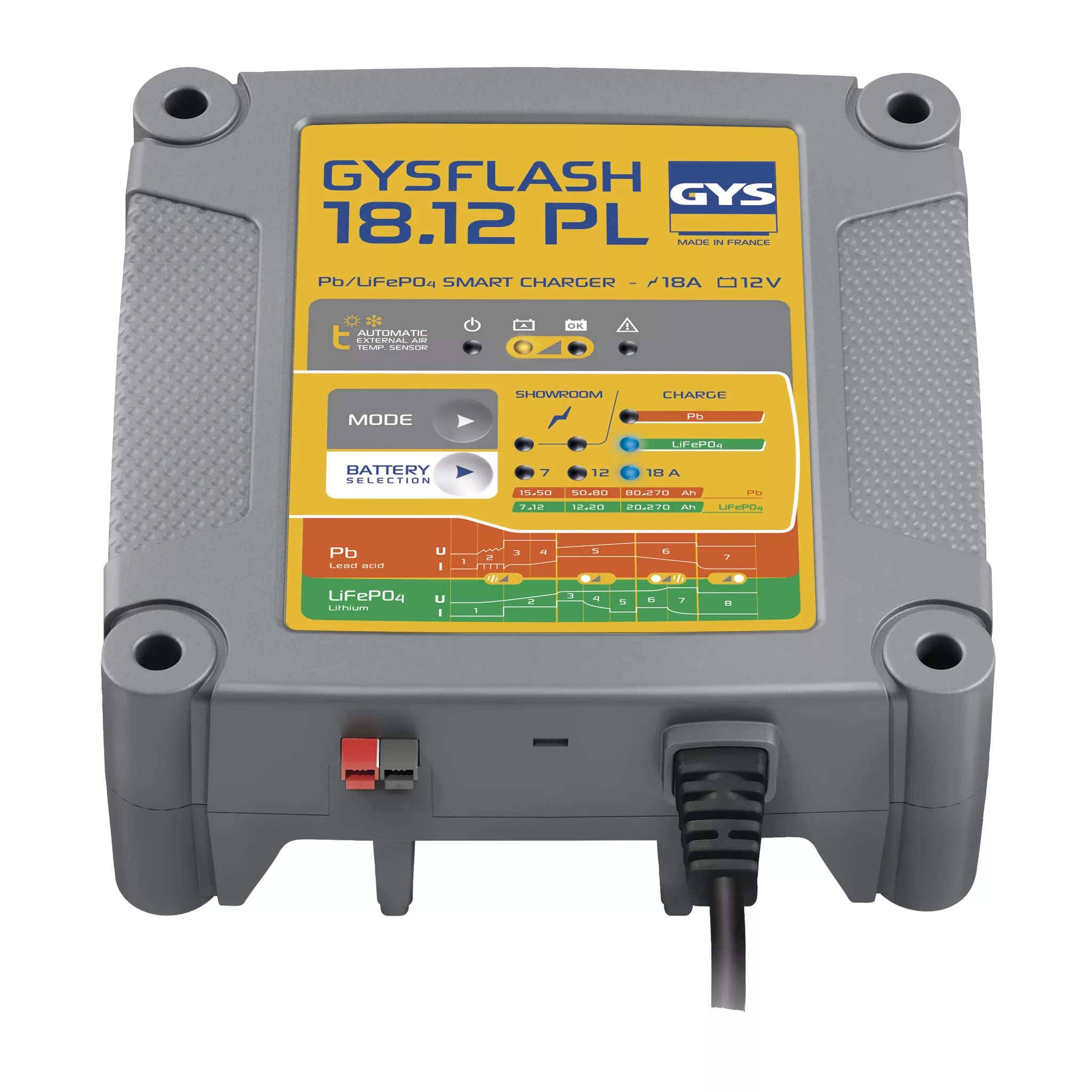

With a power of 18A, the GYSFLASH 18.12 PL Charger is a smart charger designed to charge 12V lead-acid and lithium batteries. It can also be used as a Battery Support unit and its «Showroom» mode enables to safely support and maintain showroom vehicle batteries.
DUAL TECHNOLOGY: LEAD-ACID & LITHIUM
- High performance, 18 A duty cycle at 100% (40°C).
- 2 charging modes :
: designed for every 12 V lead-acid batteries from 15 Ah to 270 Ah.
: designed for lithium iron phosphate batteries from 7 Ah to 270 Ah.
- 3 charging currents: 7 A, 12 A and 18 A. The user can select the charging current according to the technology and capacity of the battery.
- Showroom mode , ensures current compensation up to 18 A when using electrical accessories of a demonstration vehicle and during the diagnostic phase.
- Supply mode, provides a stabilised power supply so the GYSFlash 18:12 PL can be used as a Battery Support unit:
– this mode can also be used during a battery change to preserve the vehicle’s memory.
- Optimised maintenance charge, the charger can safely remain connected indefinitely, for example during winter, to maintain the health of the battery. The «Auto Restart» function
means that the charger will memorise the settings and restart automatically in the event of a power cut.
- Will charge deeply discharged batteries from as low as 2 V.
100% AUTOMATIC CHARGE
- Extend performance and lifetime of lead-acid (gel, AGM, liquid, calcium, etc.) and LiFePO4 batteries (LFP).
- External temperature sensor, for an optimal battery charge whether it’s summer or winter.
The charger adjusts its charging parameters depending on ambient temperature.
SAFETY
- Protection of the vehicle’s on-board electronics: protection against short circuits, polarity reversal and overcharging. Spark prevention system.
- Automatic stand-by mode if the battery is disconnected.
- Integrated temperature sensor to prevent internal electronics’ overheating.
- Simplified interface to prevent user errors.
ERGONOMICS
- Compact design, light and portable.
- Option (with calibration): 6 m cable (ref. 027435)
- Can be wall mounted, optional magnetic system available (ref. 026063)
Specifications
- Model: GYSFLASH 18.12 PL
- Family: CHARGERS
- Sub-family: CHARGERS – GYSFLASH PLUS
- Catalogue: CHARGER
- Country of origin: FR
- EAN / GTIN-13: 3154020026926
Charger specifications
- Battery compatibility: Lead-acid and lithium-ion
- Battery voltage: 12 V
- Battery capacity range: 15–270 Ah
- Design: Inverter
- Power supply: Single-phase
- Input voltage: 230V
Dimensions & weight
- Net weight: 1.66 kg
- Dimensions (H×W×D): 8×20×20 cm
