GYSflash 18.12 Charger Pl-E

Description

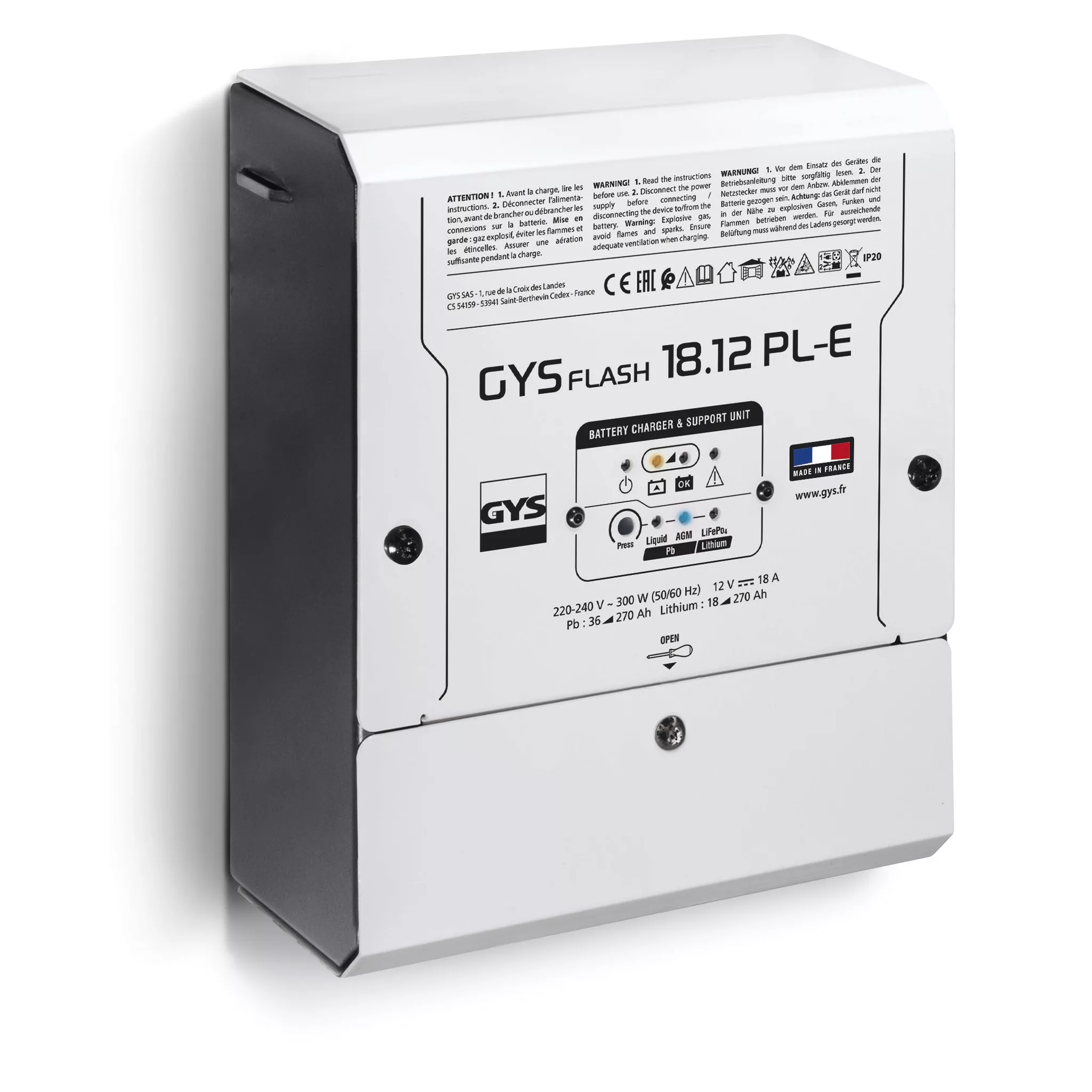

GYSFLASH 18.12 Charger PL-E

The GYSFLASH 18.12 Charger PL-E benefits from an innovative design entirely dedicated to the recharging of utility batteries found in leisure vehicles (camper vans, caravans…) and pleasure craft. This 18A charger integrates three charging curves for 12V Lead/liquid, Lead/AGM and Lithium-Iron Phosphate (LiFePO4) batteries, guaranteeing quality and respect for the battery.

HIGH-PERFORMANCE TECHNOLOGY

• High efficiency, duty cycle of 18 A at 100% (25°C): the charger retains all its power during the use phase. Energy consumption is reduced by 15%.
• With PFC (Power Factor Correction) technology, the power grid is better exploited.

The absorbed current is cleaner and generates a saving of 22% compared to a standard charger.

THE DESIGN IS ERGONOMIC, ROBUST AND QUIET

• Fanless technology: no external ventilation, silent charger without dust infiltration. This ensures that the electronics remain protected from any external pollution.
• Robust and compact aluminium casing. The charger is shock and corrosion resistant.
• Simple and intuitive interface.
• Mounting on vertical wall.

OPTIMAL AND GENTLE CHARGING OF THE BATTERY

• Extends the life and performance of Lead (AGM, liquid, etc.) and Lithium (LFP) batteries.
• Automatically compensates for the requirements of the electrical appliances.
• 3 charging modes:

– Liquid Lead: for charging 12 V lead-acid batteries from 12V to 270 Ah.
– Lead/AGM: for charging 12V AGM lead-acid batteries from 36 Ah to 270 Ah.
– LiFePO4: for charging Lithium-Iron Phosphate batteries from 18 Ah to 270 Ah.

ULTRA-SECURE

• Protection of the vehicle’s on-board electronics: protection against short circuits, polarity reversal and overcharging. Spark prevention system.
• No output voltage if the battery is not connected.
• Integrated temperature sensor to prevent internal electronics’ overheating.
• Complies with all current European standards in terms of safety and Electromagnetic Compatibility (EMC).
• Anti-starting signal indicating to the vehicle that the charger is connected to the power supply

See the attached datasheet for more information.

Specifications

• Model: GYSFLASH 18.12 PL-E
• Family: CHARGERS
• Sub-family: CHARGERS – GYSFLASH ON BOARD
• Catalogue: CHARGER
• Country of origin: FR
• EAN / GTIN-13: 3154020025806

Charger specifications

• Battery compatibility: Lead-acid and lithium-ion
• Battery voltage: 12 V
• Battery capacity range: 36–270 Ah
• Design: Inverter
• Power supply: Single-phase
• Input voltage: 230V

Dimensions & weight

• Net weight: 1.32 kg
• Dimensions (H×W×D): 7.5×17.5×21.5 cm

View on GYS | CE certificate | Datasheet | User manual
