Description

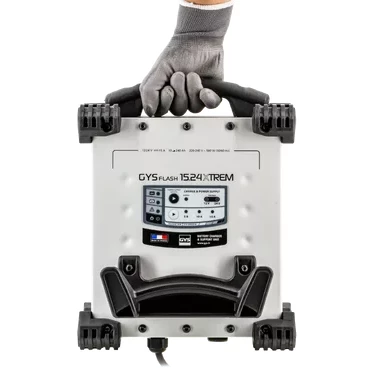

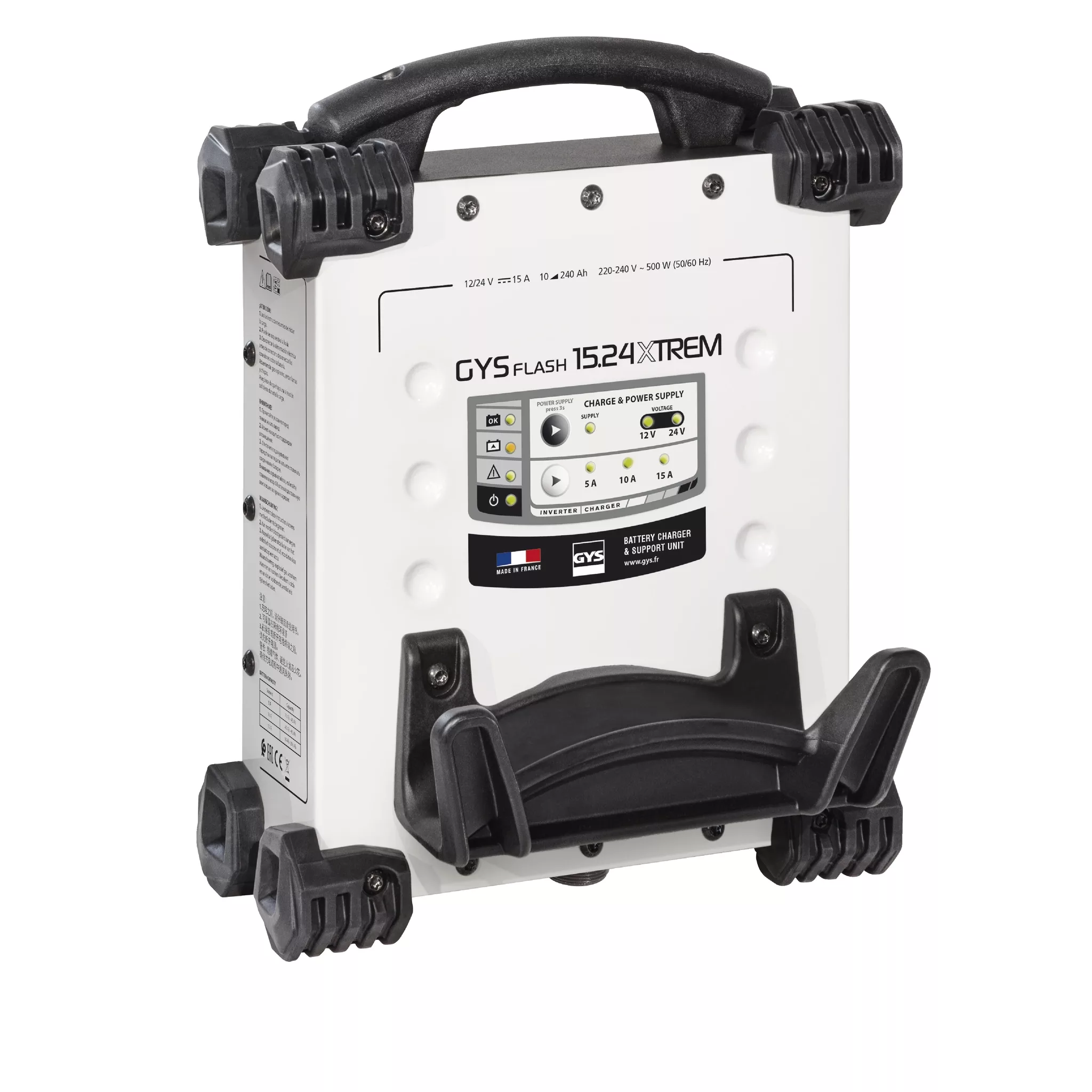

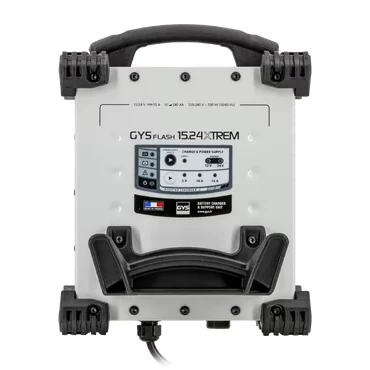

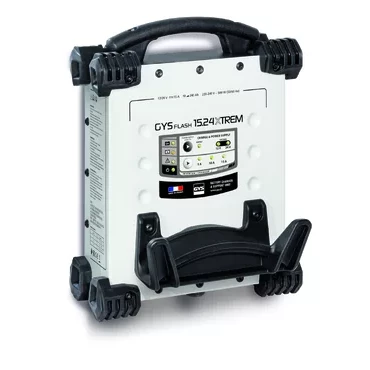

The GYSFLASH 15.24 Charger Xtrem battery charger is the ultimate in mechanical and electronic design. Designed to operate in very demanding environments, such as quarries, heavily polluted areas or military settings, this charger is shock resistant and protected against splashing materials or liquids (IP65). Suitable for recharging 12 V and 24 V lead batteries, it has a charging current of up to 15 A sufficiently convenient for the maintenance of the majority of vehicles (plants, trucks, tanks, cars, tractors…)
HIGH-PERFORMANCE TECHNOLOGY
- High efficiency, duty cycle of 15 A at 100% (40°C).
- Fanless technology: no external ventilation, no dust infiltration.
- 2 charging modes:
Pb (14.4 V / 15 A max.): for charging 12 V lead batteries from 10 Ah to 240 Ah.
Pb (28.8 V / 15 A max.): for charging 24 V lead batteries from 10 Ah to 240 Ah.
- 3 charging currents: 5 A, 10 A and 15 A. The user can select the charging current according to the technology and capacity of the battery.
- Supply mode, transforms the charger into a stabilized power supply to preserve the vehicle’s memory when replacing the battery.
RESISTANT TO EXTREME CONDITIONS

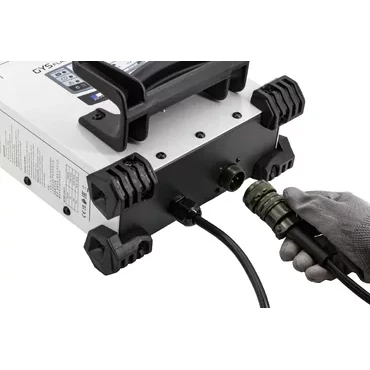

- Impact-resistant, compact and robust housing with cable storage at the front.
- Pads for shock and vibration absorption.
- Charger protected against dust and microscopic residues and against water jets from all directions (IP65).
- Wall mounting with slide system or optional magnet (MagnetFix)..
- Highly resistant, safe and capable of withstanding strong currents.
ADVANCED FUNCTIONS
- Automatic restart in the event of a power failure with settings stored.

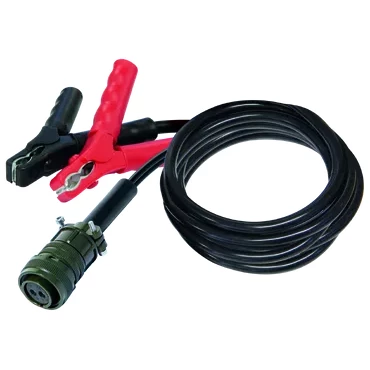

- Checking and calibrating the cables for optimal battery charging (recalibration in case of cable change).
- Possibility to force charge if the battery voltage is less than 1 V.
100% AUTOMATIC CHARGE
- Extends the life and performance of lead batteries (gel, AGM, liquid, calcium, etc.)..
- Specific charging curve in 6 steps (lead battery) unattended.
- Battery charging from 1 V.
ULTRA-SECURE
- Protection of the vehicle’s on-board electronics: protection against short circuits, polarity reversal and overcharging. Spark prevention system.
- Automatic stand-by mode if the battery is disconnected.
- Built-in temperature sensor to adapt the battery charge voltage level.

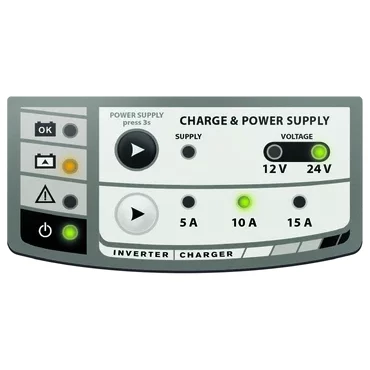

- Simplified interface to prevent user errors.
- Complies with military standard VG 96960.
See the attached datasheet for more information.
Other Products
GYSFLASH 103.24 CNT FV (5.0m Cables)
Specifications
- Model: GYSFLASH 15.24 XTREM
- Family: CHARGERS
- Sub-family: CHARGERS – GYSFLASH PRO
- Catalogue: CHARGER
- Country of origin: FR
- EAN / GTIN-13: 3154020025813
Charger specifications
- Battery compatibility: Lead-acid
- Battery voltage: 24 V
- Battery capacity range: 5–240 Ah
- Design: Inverter
- Power supply: Single-phase
- Input voltage: 230V
Dimensions & weight
- Net weight: 4.74 kg
- Dimensions (H×W×D): 10.5×31×24.5 cm
