Description

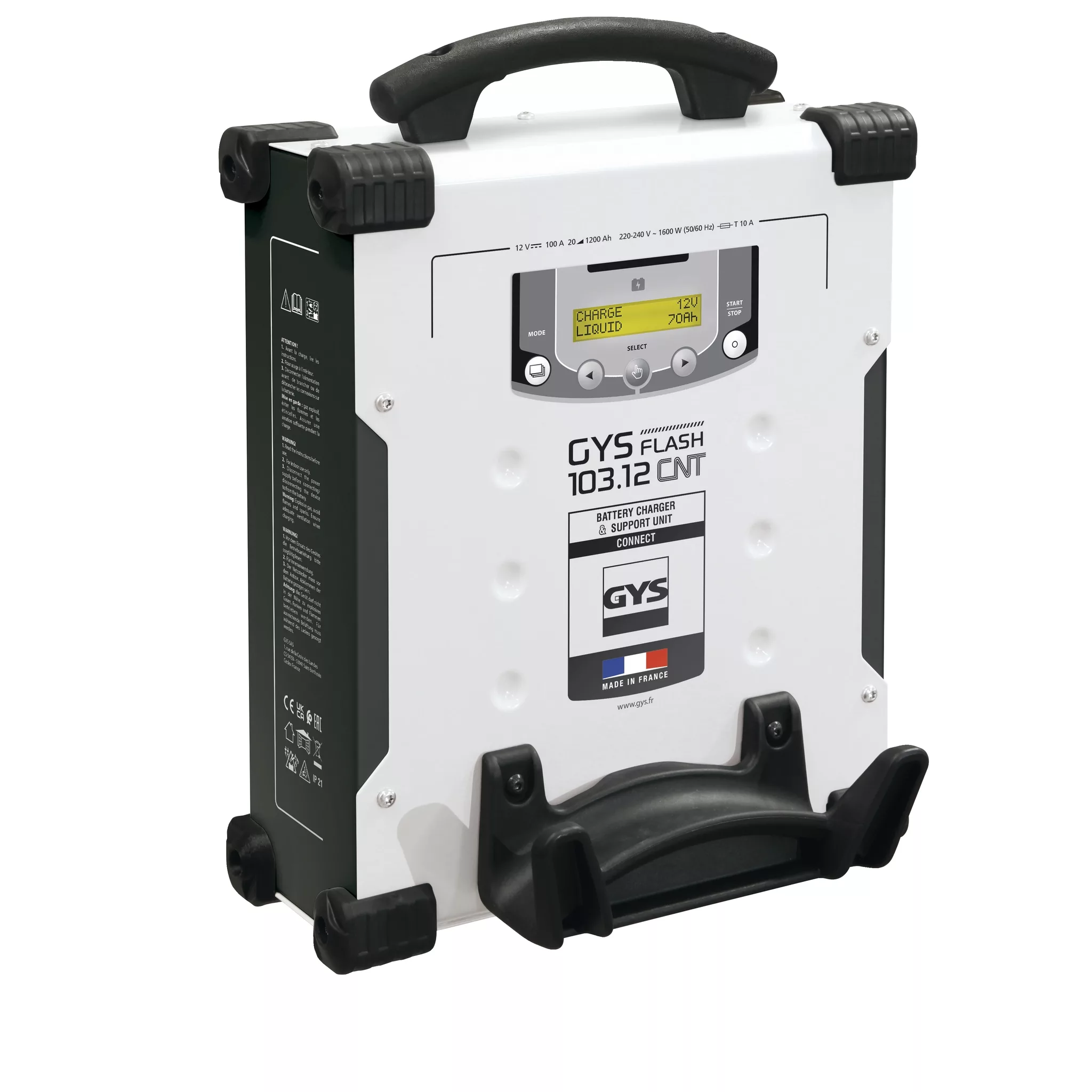

Designed to be mounted on a wall or a lift platform, the upright GYS GYSFLASH 103.12 Charger CNT FV is a high power, 100A charger equipped with inverter technology. It allows a 12 V, lead or lithium battery (standard lithium-ion and lithium iron phosphate) to be maintained at a perfectly stabilised voltage during the diagnostic phases. It also guarantees high-quality charging for maintaining even the most advanced vehicles. Its USB connection means that it can be fully customised.
FOUR OPERATING MODES
- Charging: for 12 V, lead or lithium batteries between 20 – 1,200 Ah.
- Diagnostics : supports vehicles’ batteries, up to 100 A, during diagnostics in maintenance workshops.
- Showroom : ensures current compensation when using a demonstration vehicle’s electrical equipment. It also manages the battery’s optimal state of charge.
- Testing : monitors the battery’s voltage and evaluates the starting system (starter and battery) as well as the condition of the vehicle’s alternator.
100% INTERNET CONNECTED
- Add, delete or edit charging modes and profiles via the USB key.
- Import predefined configuration files perfectly tailored to the current charging tasks.
- Recover history and charging data from a USB key and analyse it in a spreadsheet.
- Connect additional modules (printer, bar-code reader, etc.) using the smart module connection (SMC).
AUTOMATIC CHARGING
- Extends the life and performance of lead-acid batteries (gel, AGM, liquid and calcium, etc.) as well as lithium batteries (standard lithium-ion and lithium iron phosphate).
- Featuring a specialised, eight-stage (lead) or nine-stage (lithium) charging curve that can be used autonomously.
- Recovers deeply discharged batteries (> 2 V) with its automatic SOS Recovery stage.
TECHNOLOGIES & ADVANCED FEATURES
- The ‘Auto-Detect’ feature automatically starts the charging process when a battery is connected to the charger.
- The ‘Auto-Restart’ feature comes into action in the event of a power failure and saves the current settings.
- Controls and calibrates cables
- Its locking mechanism prevents tampering making it ideal for garages and exhibition halls.
- Up to 12 different charging modes available, including an ‘Easy’ mode for a simple way to charge all lead-acid batteries
ULTRA-SECURE
- Preserves the vehicle’s on-board electronics: featuring short-circuit, reverse-polarity and overload protection Anti-spark system
- Interchangeable fuse protects against operating errors
- Temperature sensor prevents the internal electronics from overheating
USER FRIENDLY
- Compact and robust casing with a cable reel on the front
- Shock- and vibration-absorbing pads
- Wall mounting with optional magnetic rail system (MagnetFix 50)
See the attached datasheet for more information.
Specifications
- Model: GYSFLASH 103.12 CNT FV
- Family: CHARGERS
- Sub-family: CHARGERS – GYSFLASH PRO
- Catalogue: CHARGER
- Country of origin: FR
- EAN / GTIN-13: 3154020072008
Charger specifications
- Battery compatibility: Lead-acid and lithium-ion
- Battery voltage: 12 V
- Battery capacity range: 20–1200 Ah
- Design: Inverter
- Power supply: Single-phase
- Input voltage: 230V, 110V
Dimensions & weight
- Net weight: 5.76 kg
- Dimensions (H×W×D): 35×29×12.5 cm
