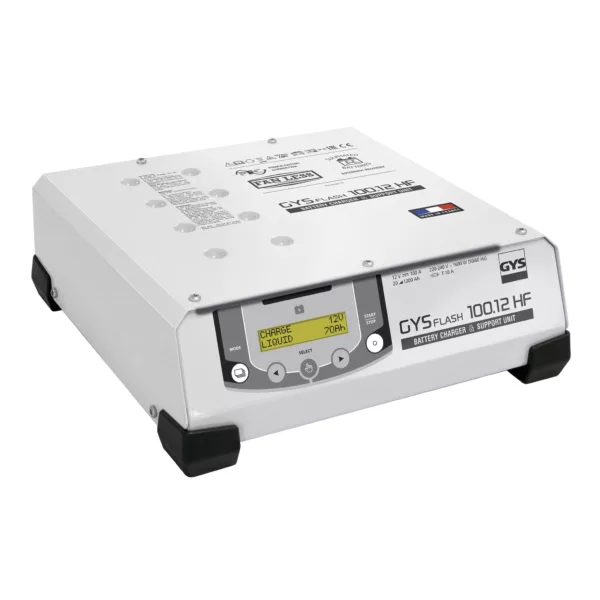

GYSflash 100.12 Charger Hf 5M Cables

Description

The GYSFLASH 100.12 Charger HF is a 100A, high-power, stabilised power supply featuring inverter technology with five separate functions:

Battery support: sustains 12V (liquid or gel) automotive battery during diagnostic work

Advance battery charger: ensures an ideal charging cycle for battery maintenance for the most modern vehicle

Showroom mode: maintains batteries in showroom vehicles

In «battery change» mode, will maintain electrical supply to preserve vehicle memory settings

High power stabilised supply: voltage & current adjustable

5 operating modes

• Charging
• Diagnostic
• Showroom
• Change battery
• Power Supply

Avanced features

• Automatic restart
• Cable testing and calibrating
• Showroom mode lock feature
• “Easy charge” mode
• Activate and adjust an “expert” charging curve
• Automatic SOS recovery for sulphated batteries

Cables

• Fitted with 2.5 m / 16 mm² (x2) cables
• It can be fitted with 8 m / 16 mm² cables and higher. Calibration is automatic.

FEATURES

• Low height (< 11 cm): to enable the device to fit underneath a vehicle.
• Showroom mode lock: to avoid misuse when vehicles are displayed in garages and showrooms.
• Automatic restart: automatically resumes the most recently used operating mode in the event of a power failure

Specifications

• Model: GYSFLASH 100.12 HF
• Family: CHARGERS
• Sub-family: CHARGERS – GYSFLASH PRO
• Catalogue: CHARGER
• Country of origin: FR
• EAN / GTIN-13: 3154020029002

Charger specifications

• Battery compatibility: Lead-acid and lithium-ion
• Battery voltage: 12 V
• Battery capacity range: 20–1200 Ah
• Design: Inverter
• Power supply: Single-phase
• Input voltage: 230V

Dimensions & weight

• Net weight: 4.92 kg
• Dimensions (H×W×D): 10.6×29.7×32 cm
